Husqvarna HUV 4421 DXP (2009) Utility Vehicle

Model: HUV 4421 DXP (2009)

Back To Assemblies

Save Part Not Listed?
product name

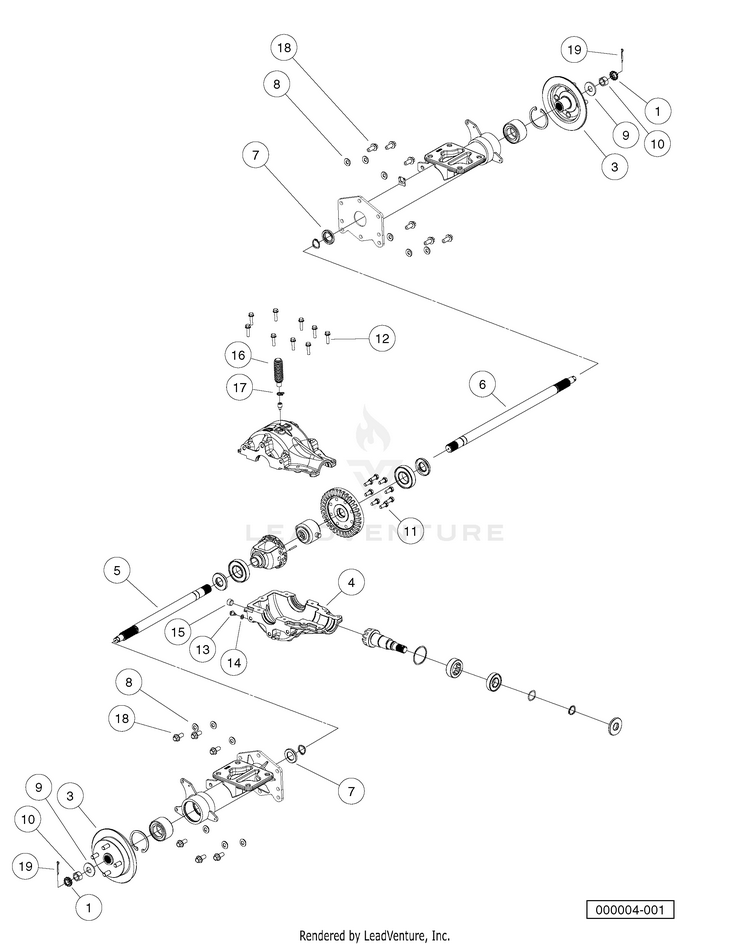

Rear Differential

...
...
1
Axle, Rear, Guard Mounts (includes items 2 through 19) HUS-102831501
...
2
Locking Cap, Nut HUS-102276001
...
3
Assy, Rotor, Brake, Rear HUS-102376602
...
4
Gearcase, Lower, Machined HUS-102449101
...
5
Axle, Right-hand HUS-102463501
...
6
Axle, Left-Hand HUS-102463601
...
7
Washer,counterbored 51 X 30 HUS-102672101
...
8
Washer, Bellevle, 1.063 X .043 HUS-102672201
...
9
Washer, Belleville, 49 X 4 HUS-102672301
...
10
Nut, Hex, M20 X 1.5 , Modified HUS-102672401
...
11
Screw, M10 X 25 HUS-102693201
...
12
Screw,hex Flange, M8 X 35 HUS-102693301
...
13
Plug,3/8-16, Hex Flange HUS-102693401
...
14
Washer, .625 X .382 X .60 HUS-102693501
...
15
Plug, Square Skt, 1/12-14, Ptf HUS-102694201
...
16
Bellows, Vent, Upper Housing HUS-102694301
...
17
Clamp, Hose, Dw-9.5 HUS-102694401
...
18
Screw, Hex Fl, M12 X 1.75 X 30 HUS-102694701
...
19
Pin, Cotter, 5/32 X 1.25 HUS-102694801
