Husqvarna HUV 4421 DXP (2009) Utility Vehicle

Model: HUV 4421 DXP (2009)

Back To Assemblies

Save Part Not Listed?
product name

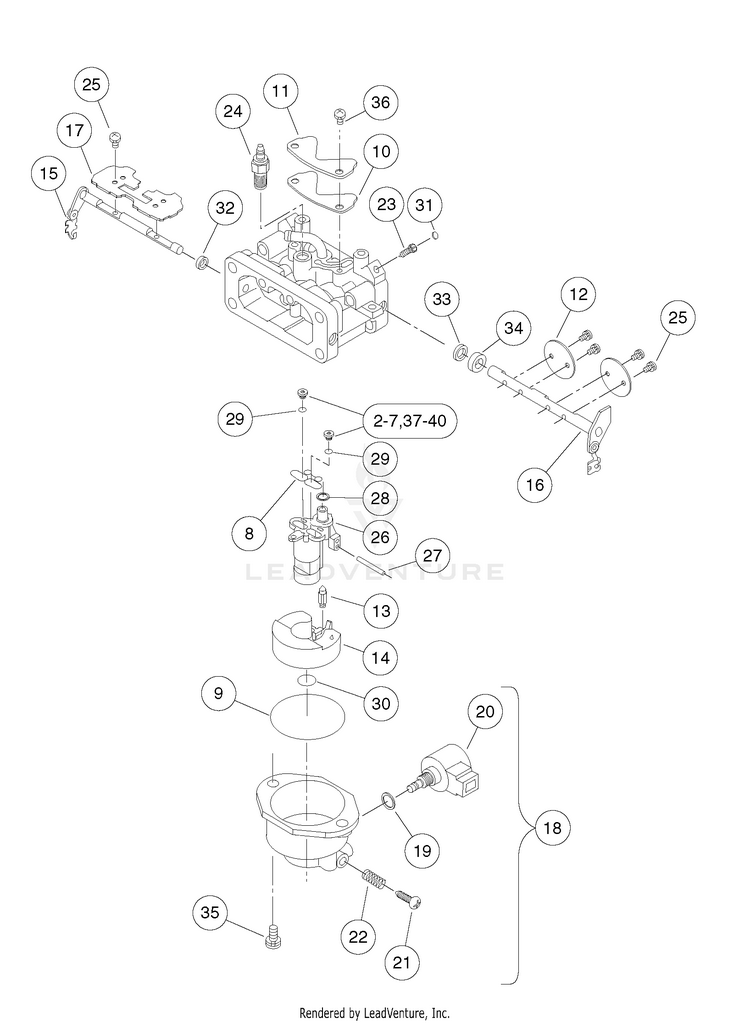

Carburetor Assembly, Kawasaki Gasoline Vehicles

...
...
1
Asm, Carburetor, FH680D (includes items 2 through 37) HUS-103596801
...
2
Kit, Jet, 6600 Ft +, Fh680d (includes items 3 and 4) HUS-103307201
...
3
Jet, Push In #96, FH680D (6600 ft and higher (2000 m and higher)) HUS-103306801
...
4
Instructions, Kit, Jet, Push In HUS-103307101
...
5
Kit, Jet, 3300-6600 Ft, Fh680d (includes items 6 and 7) HUS-103307301
...
6
Jet, Push In #99, FH680D (3300-6600 ft (1000-2000 m)) HUS-103306901
...
7
Instructions, Kit, Jet, Push In HUS-103307101
...
8
Gasket, Fh680d HUS-103340601
...
9
Gasket, Carburetor, Dia. 52 HUS-103340701
...
10
Gasket, Cover, Fh680d HUS-103340801
...
11
Cover, Slow Passage, Fh680d HUS-103340901
...
12
Valve, Throttle, Fh680d HUS-103341101
...
13
Valve, Float, Fh680d HUS-103341201
...
14
Float, Carburetor, Fh680d HUS-103341301
...
15
Shaft, Carburetor, Fh680d HUS-103341401
...
16
Shaft, Carburetor, Throttle HUS-103341501
...
17
Valve, Carburetor, Fh680d HUS-103341601
...
18
Asm, Chamber, Float, Fh680d (includes items 19 through 22) HUS-103341701
...
19
Gasket, Carburetor, Fh680d HUS-103340501
...
20
Solenoid, Carburetor, Fh680d HUS-103341901
...
21
Screw, Drain, Carburetor HUS-103342201
...
22
Spring, Carburetor, Fh680d HUS-103343601
...
23
Needle, Jet, Fh680d HUS-103341801
...
24
Heater, Carburetor, Fh680d HUS-103342001
...
25
Screw, Carburetor, M3 X 6 HUS-103342101
...
26
Spacer, Carburetor, Fh680d HUS-103342301
...
27
Pin, Carburetor, Fh680d HUS-103342401
...
28
O-ring, Carburetor, Dia. 6.5 HUS-103342501
...
29
O-ring, Carburetor, Fh680d HUS-103342601
...
30
O-ring, Carburetor, Dia. 9 HUS-103342701
...
31
Plug, Expansion, Carburetor HUS-103343301
...
32
Seal, Carburetor, Dia. 5.9 HUS-103343401
...
33
Seal, Carburetor, Fh680d HUS-103343501
...
34
Collar, Carburetor, Fh680d HUS-103343701
...
35
Screw, Carburetor, M5 HUS-103343801
...
36
Screw, Carburetor, M4 HUS-103343901
...
37
Kit, Jet, 0-3300 ft. FH680D (includes items 38 through 40) HUS-103596701
...
38
Jet, Push In #102, FH680D (0-3300 ft (0-1000 m)) HUS-103307001
...
39
Instructions, Kit, Jet, Push In HUS-103307101
...
40
Jet, Push In, #104 FH680D (0-3000 ft (0-1000m)) HUS-103596601
