Husqvarna HUV 4421 DXP (2009) Utility Vehicle

Model: HUV 4421 DXP (2009)

Back To Assemblies

Save Part Not Listed?
product name

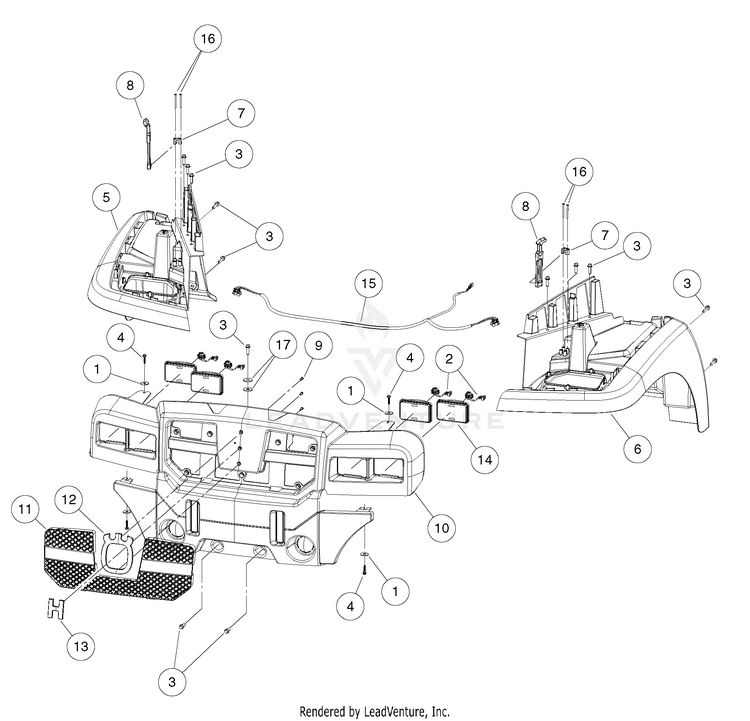

Facia and Fenders

...
...
1
Washer, 5/16 Type B Flat HUS-1011578
...
2
Connector Harness Assembly, Headlight HUS-101987901
...
3
Screw, M8X1.25X30, Hex HUS-102289001
...
4
Screw,m6,torx,interlock,thread HUS-102297230
...
5
Fender, Front, Pass, AWD HUS-102866901
...
6
Fender, Front, Drv, AWD HUS-102867001
...
7
Bracket, Latch, Draw HUS-102882401
...
8
Latch, Draw, Hood HUS-102895101
...
9
Screw, D50x16, Torx PN Hd PT HUS-102895401
...
10
Fascia, Husqvarna HUS-102981601
...
11
Grill, Husqvarna HUS-102981701
...
12
Emblem, Husqvarna, Outer HUS-102989301
...
13
Emblem, Husqvarna, Inner HUS-102989302
...
14
Headlamp, 3x5 Rectangular HUS-103203801
...
15
Harness, Bct/huv Restyle Headlight HUS-103213201
...
16
Screw, #8x2.00 AB Thd, Hex Hd HUS-103218107
...
17
Washer, 3/8 Type B Flat HUS-808
