Husqvarna HUV 4421 DXP (2009) Utility Vehicle

Model: HUV 4421 DXP (2009)

Back To Assemblies

Save Part Not Listed?
product name

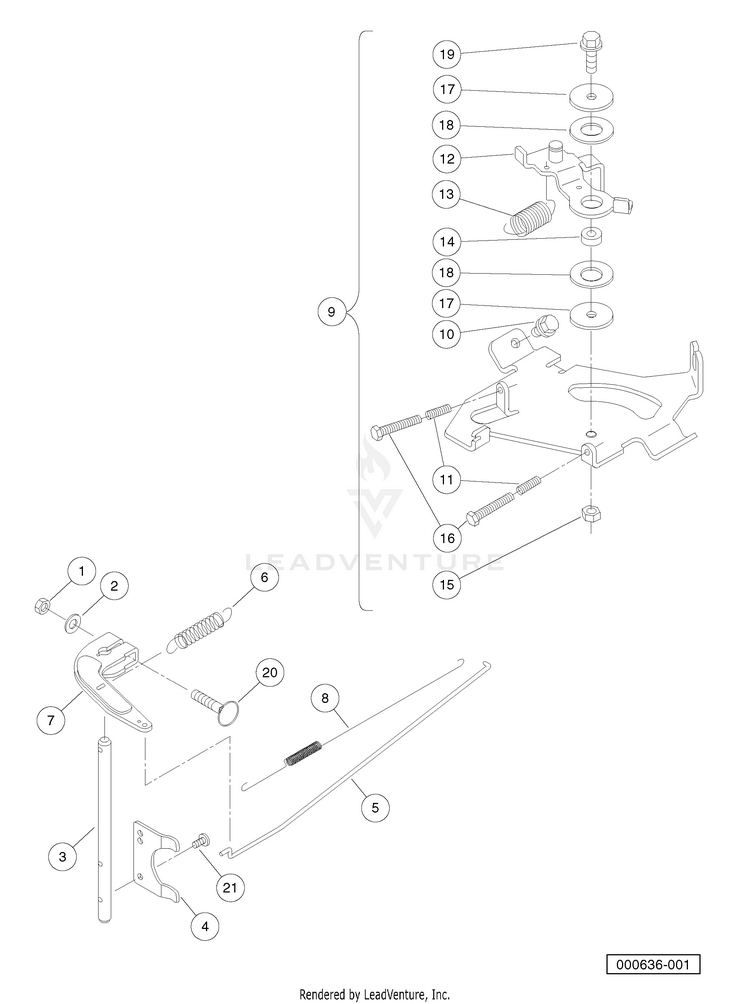

Governor Arm and Springs

...
...
1
Nut -6mm- HUS-1012919
...
2
Washer, M6 Flat HUS-1016513
...
3
Shaft, Governor, Fh HUS-103002001
...
4
Plate, Governor, Fh HUS-103002101
...
5
Link, Arm, Governor, Fh HUS-103002301
...
6
Spring, Governor, Fh HUS-103002401
...
7
Arm, Governor, Shaft HUS-103002501
...
8
Spring, Arm, Governor, Fh HUS-103002901
...
9
Panel, Control, Complete, Fh (includes items 10 through 19) HUS-103297701
...
10
Bolt, Flg, M6 X 1.0 X 12 HUS-102992401
...
11
Spring, Fh HUS-103002801
...
12
Lever, Governor, Control, Fh HUS-103297401
...
13
Spring, Governor Return, Fh HUS-103297501
...
14
Collar, Governor, Fh HUS-103297601
...
15
Nut, Governor, Fh HUS-103297801
...
16
Bolt, Speed Control, Fh HUS-103298001
...
17
Washer, Governor, Lower, Fh HUS-103298201
...
18
Washer, Governor, Middle, Fh HUS-103298301
...
19
Bolt, Flanged, M6 X 20, Kaw HUS-103298501
...
20
Bolt, M6 X 35, Kawasaki HUS-103298101
...
21
Screw, Pan, Governor, Fh HUS-103298601
