Husqvarna HUV 4421 DXP (2009) Utility Vehicle

Model: HUV 4421 DXP (2009)

Back To Assemblies

Save Part Not Listed?
product name

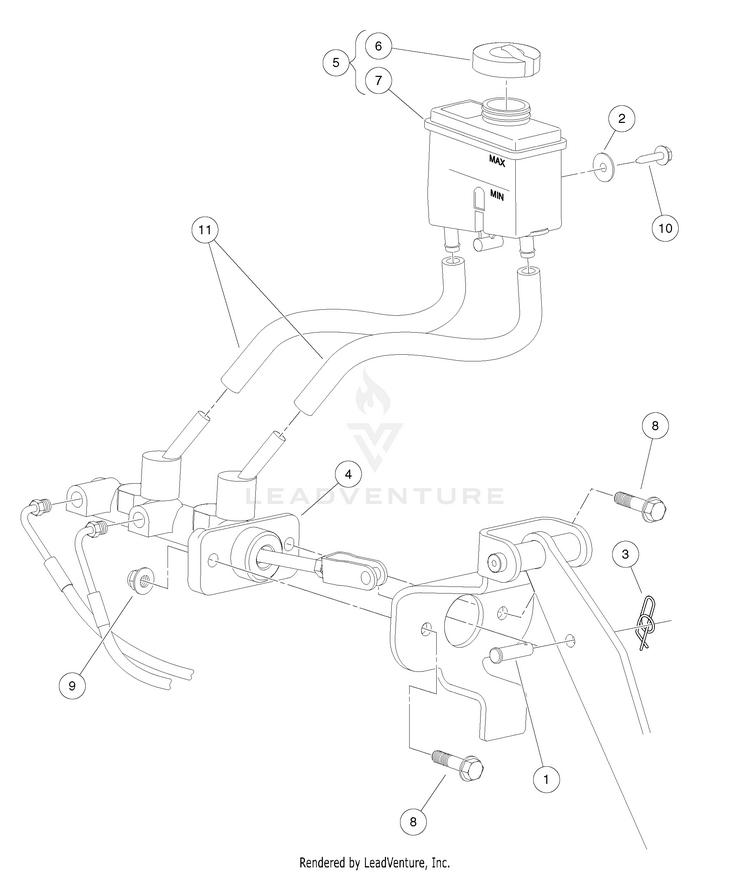

Master Cylinder With Remote Reservior

...
...
1
Clevis Pin, 5/16 X 1 HUS-101082903
...
2
Washer, 1/4" Type B Flat HUS-1014306
...
3
Pin, Rue HUS-102176901
...
4
Cylinder, Master, Tandem HUS-102402801
...
5
Assembly, Reservoir, Remote (includes items 6 and 7) HUS-102402901
...
6
Filler Cap Asm HUS-102051401
...
8
Bolt Flanged Head, M8 X 1.25 X 35 HUS-102618401
...
9
Lock Nut, Flg M8 X 1.25 Nylon HUS-102618601
...
10
Screw, #10x3.50 Ab Thd, Hex Hd HUS-103218213
...
11
Hose, Reservoir, Brake Fluid HUS-103293201
