Husqvarna HUV 4421 DXP (2009) Utility Vehicle

Model: HUV 4421 DXP (2009)

Back To Assemblies

Save Part Not Listed?
product name

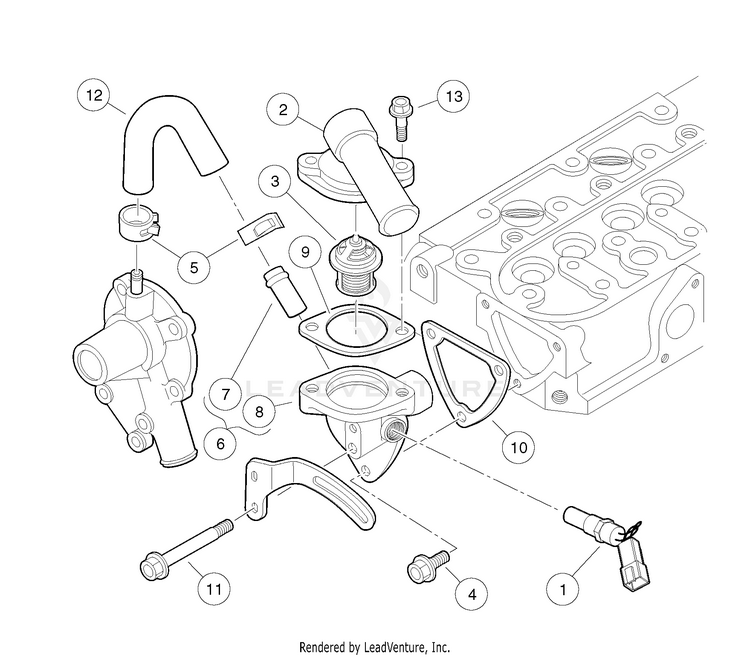

Water Flange And Thermostat

...
...
1
Sensor, Coolant Temp HUS-102410001
...
2
Cover, Thermostat HUS-102631301
...
3
Assy, Thermostat HUS-102631401
...
4
Bolt, M6 X 1 X 20 HUS-102631601
...
5
Band, Pipe HUS-102633001
...
6
Flange, Water (includes items 7 and 8) HUS-102633201
...
7
Pipe, Water Return, D722 HUS-102633301
...
9
Gasket, Thermostat HUS-102633401
...
10
Gasket, Water Flange HUS-102654701
...
11
Bolt, Alt, D722, Stay Lower HUS-102730901
...
12
Pipe, Water Return, D722 HUS-102731001
...
13
Bolt, D722, Thermostat Cover HUS-102731101
