Husqvarna HUV 4421 DXP (2009) Utility Vehicle

Model: HUV 4421 DXP (2009)

Back To Assemblies

Save Part Not Listed?
product name

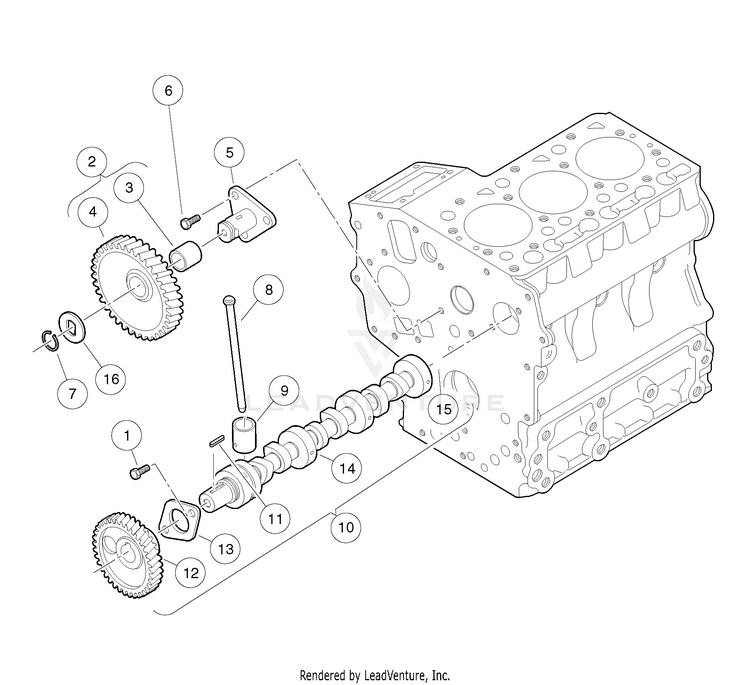

Chamshaft And Idle Gear

...
...
1
Bolt, D722, Cam End HUS-102604201
...
2
Gear, Idle (includes items 3 and 4) HUS-102604901
...
5
Shaft, Idle Gear HUS-102605001
...
6
Bolt, M6 X 1 X 14 HUS-102605101
...
7
Ring, Snap HUS-102605301
...
8
Push Rod HUS-102605401
...
9
Tappet HUS-102605501
...
10
Assy Camshaft, Long (includes items 11 through 15) HUS-102605801
...
11
Key, Feather, Long Camshaft HUS-102605601
...
12
Gear, Cam HUS-102605901
...
13
Stopper, Camshaft HUS-102606001
...
15
Ball, Check HUS-102799401
...
16
Collar, Idle Gear HUS-102654401
