Husqvarna HUV 4421 DXP (2009) Utility Vehicle

Model: HUV 4421 DXP (2009)

Back To Assemblies

Save Part Not Listed?
product name

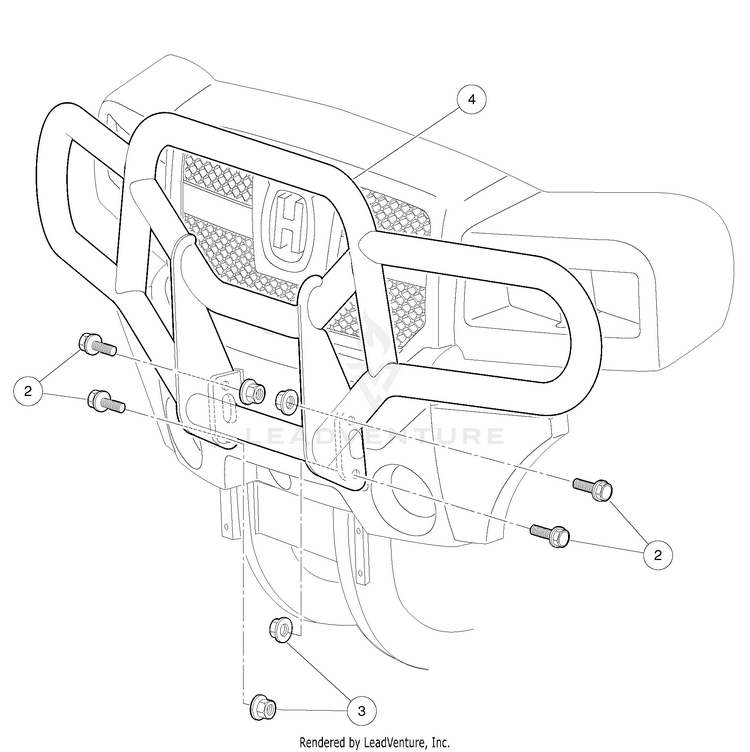

Brush Guard

...
...
1
Kit, Brush Guard Hus (includes items 2 through 4) HUS-103218401
...
2
Screw, M10 X 1.25 X 30 Hex Blk HUS-103231701
...
3
Nut, Flg, M10 X 1.25 Hex Blk HUS-103231801
...
4
Weldment, Brushguard, HUV 4421 HUS-103268601
Schematic Image Zoomed
