Husqvarna HUV 4421 DXP (2009) Utility Vehicle

Model: HUV 4421 DXP (2009)

Back To Assemblies

Save Part Not Listed?
product name

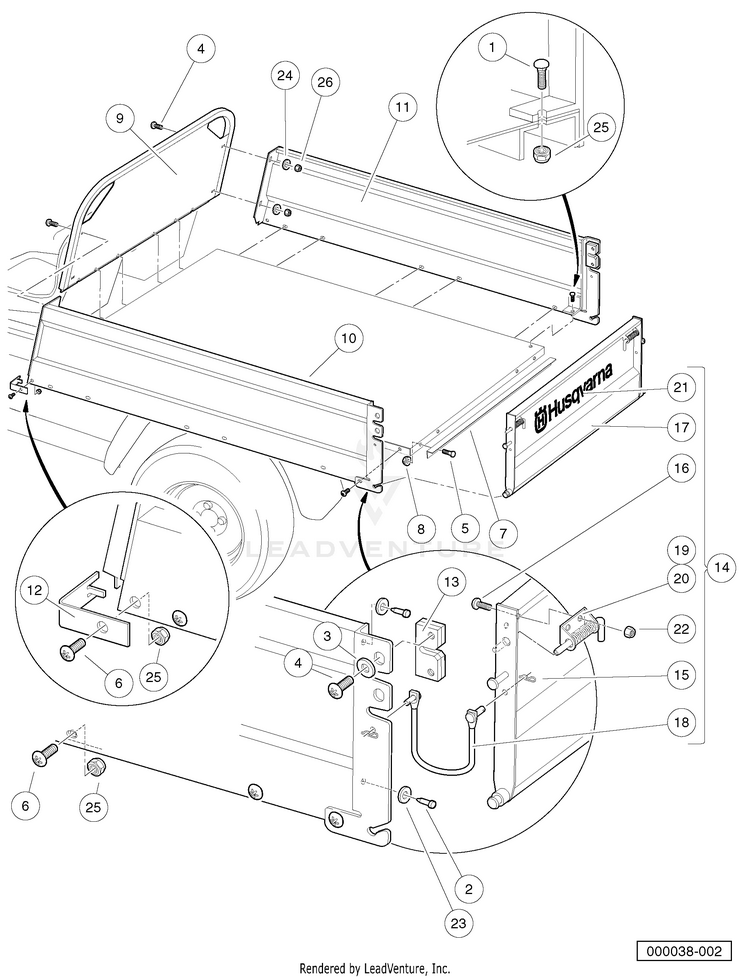

Cargo Box

...
...
1
Bolt, Carriage, 5/16-18 X 1.00 HUS-1010435
...
2
Bumper, Rubber HUS-1010436
...
3
Washer, 1/4" Type B Flat HUS-1014306
...
4
Screw, 1/4-20 X 0.75 Torx Truss-Head HUS-1014415
...
5
Stud, Self-Clinching Flush Head HUS-1014537
...
6
Screw, 5/16-18 X 0.88 Torx Truss-Head HUS-1015399
...
7
Box Bed Tailgate Angle HUS-101894304
...
8
Locknut, 5/16-18 Hex Flange HUS-101963401
...
9
Front Panel Weldment HUS-102221301
...
10
Left Panel Weldment HUS-102221401
...
11
Right Panel Weldment HUS-102221501
...
12
Front Corner Cap HUS-102221701
...
13
Slam Latch HUS-102222001
...
14
Assembly, Tailgate (includes items 15 through 22) HUS-102229904
...
15
Hair Pin Clip HUS-1013366
...
16
Screw, 1/4-20 X 0.75 Torx Truss-Head HUS-1014415
...
18
Tether Assembly HUS-102221801
...
19
Spring Latch Left HUS-102222101
...
20
Spring Latch Right HUS-102222201
...
21
Decal, Husqvarna, Tailgate HUS-102768801
...
22
Locknut, 1/4-20 Nylon Insert HUS-8233
...
23
Washer, Rubber, 3/8 HUS-102239901
...
24
Washer, 1/4 Type A Narrow Flat HUS-332
...
25
Locknut, 5/16-18 Nylon Insert HUS-7473
...
26
Locknut, 1/4-20 Nylon Insert HUS-8233
