Husqvarna HUV 4421 DXP (2008-01) Utility Vehicle

Model: HUV 4421 DXP (2008-01)

Back To Assemblies

Save Part Not Listed?
product name

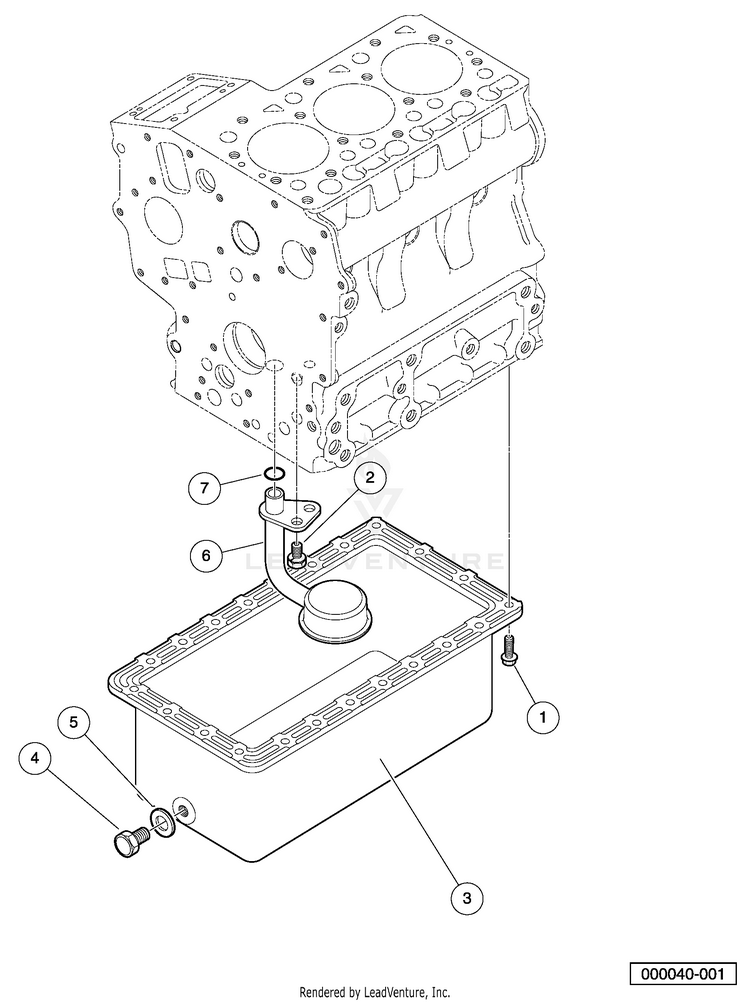

Oil Pan

...
...
1
BOLT, M6 X 1 X 14 HUS-603001236
...
2
BOLT, M8 X 1.25 X 15 HUS-603001251
...
3
COMP, OIL PAN HUS-603001252
...
4
PLUG, DRAIN, M12 X 14 HUS-603001253
...
5
GASKET, 20 X 13 HUS-603001254
...
6
FILTER, OIL, PICK UP HUS-603001255
...
7
O RING, 20 X 17 HUS-603001459
Schematic Image Zoomed
