Husqvarna HUV 4421 DXP (2008-01) Utility Vehicle

Model: HUV 4421 DXP (2008-01)

Back To Assemblies

Save Part Not Listed?
product name

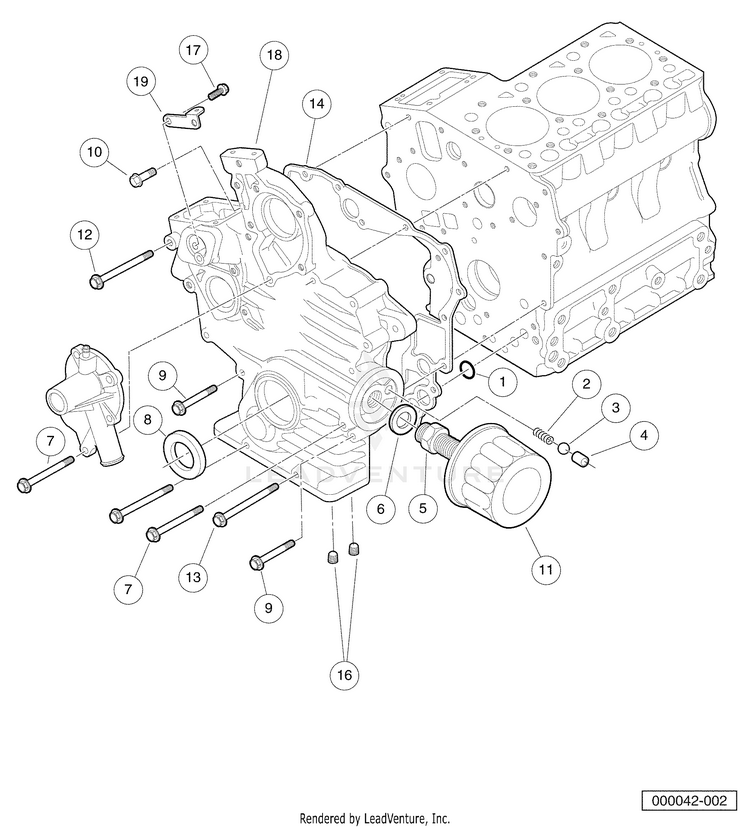

Gear Case

...
...
1
O-RING, 18 X 13 HUS-603001212
...
2
SPRING, VALVE HUS-603001213
...
3
BALL, VALVE HUS-603001214
...
4
SEAT, VALVE HUS-603001215
...
5
JOINT, PIPE HUS-603001216
...
6
WASHER, PLAIN, SPECIAL HUS-603001217
...
7
BOLT, M6 X 1 X 60 HUS-603001218
...
8
SEAL, OIL HUS-603001219
...
9
BOLT, D722, FRONT CASE HUS-603001220
...
10
BOLT, D722 INTAKE MANFLD LOWER HUS-603001456
...
11
FILTER, ENGINE OIL,D722 HUS-603000041
...
12
BOLT, GEARCASE, TOP HUS-603001712
...
13
BOLT, GEARCASE, LOWER HUS-603001713
...
14
GASKET, GEARCASE, D722 HUS-603001731
...
15
CASE-GEAR-COMP (includes items 16 through 19) HUS-603001711
...
16
PLUG, 1/4" NPT HUS-603001207
...
17
SCREW HUS-603001811
...
19
STAY-SPRING-START HUS-603001810
