Husqvarna HUV 4421 DXP (2008-01) Utility Vehicle

Model: HUV 4421 DXP (2008-01)

Back To Assemblies

Save Part Not Listed?
product name

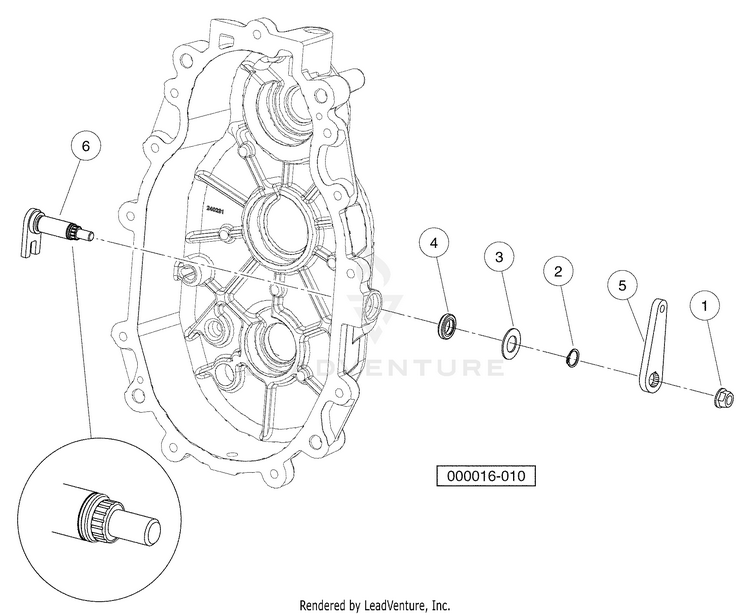

Transmission - Diesel Vehicles, Shift Shaft and Bell Crank (Style B)

...
...
1
NUT, LOCK HEX, NYLON, 5/16-24 HUS-603001640
...
2
RING, RETAINING, EXTERNAL 9/16 HUS-603001644
...
3
WASHER, FLAT, .58 X 1.08 X .05 HUS-603001646
...
4
SEAL, DUL LIP, .88 X .56 X .19 HUS-603001657
...
5
BELLCRANK, ALUM HUS-603003571
...
6
SHAFT, SHIFT HUS-603004066
