Husqvarna HUV 4421 DXP (2008-01) Utility Vehicle

Model: HUV 4421 DXP (2008-01)

Back To Assemblies

Save Part Not Listed?
product name

Steel Skid Plate

...
...
2
Skid Plate, Front, Steel HUS-603003435
...
3
Instructions, Front Skidplate HUS-603003436
...
4
KIT,HARDWARE,SKIDPLATE,FR0NT,A (includes items 5 and 6) HUS-603003438
...
5
NUT FLG M10 X 1.5 NYLON HUS-603001586
...
6
BOLT, CARRIAGE, M10X1.5X55 HUS-603003437
...
7
KIT,HARDWARE,SKIDPLATE,FR0NT,B (includes items 8 through 11) HUS-603003441
...
8
NUT FLG M10 X 1.5 NYLON HUS-603001586
...
9
WASHER, HARD, M10, ZN-NI/BLK HUS-603001673
...
10
BOLT, M10 X 1.50 X 90, LOCTITE HUS-603003439
...
11
SPACER, 17MM LONG, SKIDPLATE HUS-603003440

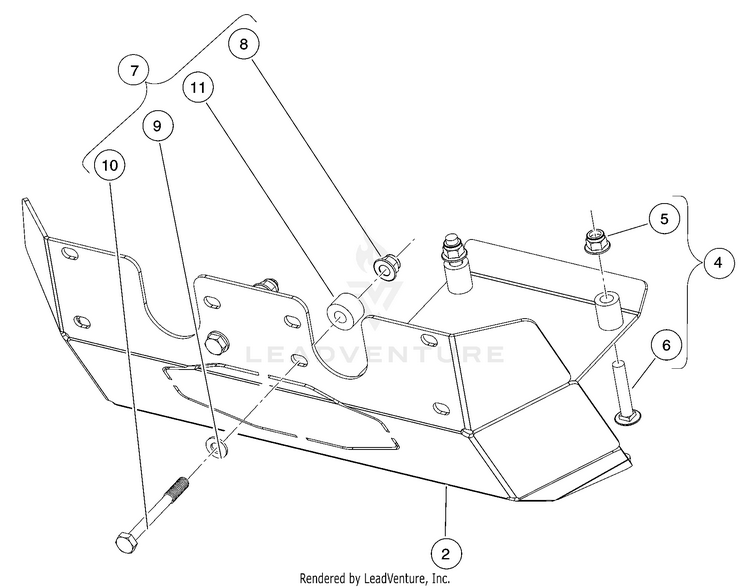

Schematic Image Zoomed
