Husqvarna HUV 4421 DXP (2008-01) Utility Vehicle

Model: HUV 4421 DXP (2008-01)

Back To Assemblies

Save Part Not Listed?
product name

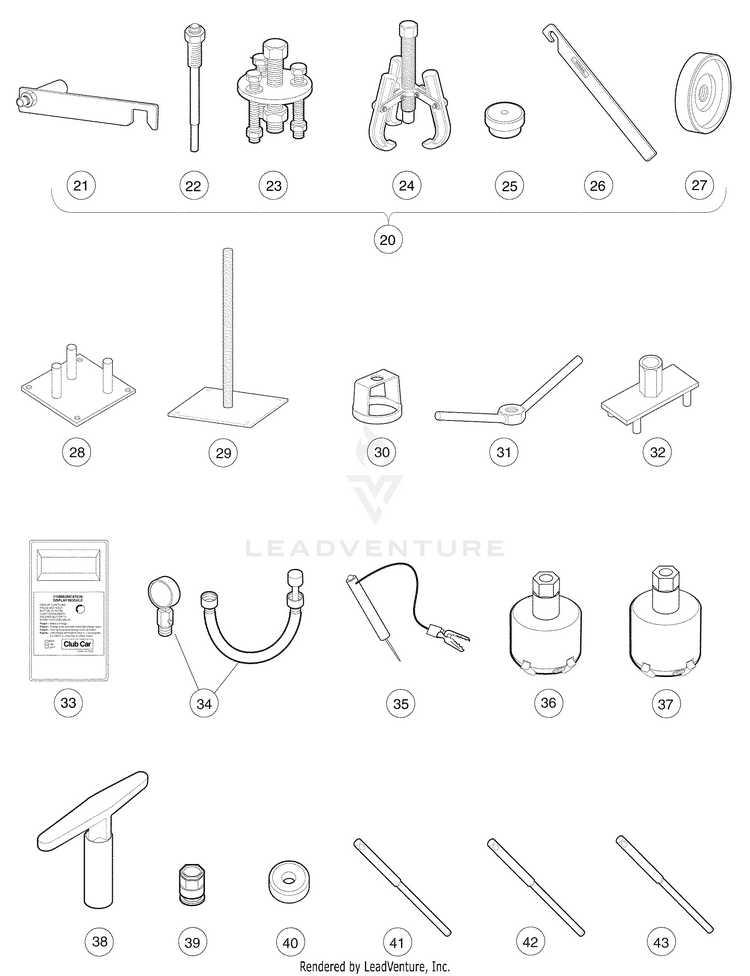

Maintenance and Service Tools Gas

...
...
1
TOOL, ACCEL. PEDAL ADJUSTMENT HUS-603001832
...
2
GUIDE RING ADHESIVE 3 GRAMS HUS-603001833
...
3
ARBOR HUS-603001834
...
4
BATTERY DISCHARGE UNIT 36/48V HUS-603001835
...
5
BATTERY TERMINAL PROTECT SPRAY HUS-603000003
...
6
BATTERY THERMOMETER HUS-603001837
...
7
BEAR & OIL SEAL REMOVER ASM HUS-603001838
...
8
BEARING DRIVER SET HUS-603001839
...
9
BEARING PULLER HUS-603001840
...
10
BEARING PULLER WEDGE ATTACH. HUS-603001841
...
11
BRAKE ADJUSMENT SOCKET TOOL (used only on vehicles with manually adjusted mechanical brakes) HUS-603001842
...
12
BRAKE CABLE RELEASE TOOL HUS-603001843
...
13
Brake Pedal Adjustment Tool Kit (includes items 14 and 15) HUS-603001844
...
16
CALIBRATION & TEST MODULE HUS-603001846
...
17
CAM INSTALLATION TOOL HUS-603001847
...
18
CHARGER BEZEL TOOL HUS-603001848
...
19
TOOL, REMOVAL, CLUTCH, GAS/DSL HUS-603001849
...
20
C.C. CLUTCH TOOL KIT (includes items 21 - 27) HUS-603001850
...
21
TOOL, CLUTCH ALIGNMENT (for pre-unitized transaxle vehicles built prior to 1997 model year) HUS-603001851
...
22
TOOL, CLUTCH PULLER (for Kawasaki engines only) HUS-603001852
...
23
CLUTCH DRIVE HUB PULLER (for Kawasaki engines only) HUS-603001853
...
24
DRIVEN CLUTCH CAM PULLER (for Kawasaki engines only) HUS-603001854
...
25
DRIVEN CLUTCH PULLER PLUG (for Kawasaki engines only) HUS-603001855
...
26
DRIVE CLUTCH HOLDER TOOL ASM. (for Kawasaki engines only) HUS-603001856
...
27
PRESS WELDMENT (for Kawasaki engines only) HUS-603001857
...
28
TOOL-STATIONARY PRIMARY HUS-603001858
...
29
TOOL-SPRING COMPRESSION BASE (for use with items 30 and 31) HUS-603001860
...
30
TOOL-SPRING COMPRESSION COLAR (for use with items 29 and 31) HUS-603001861
...
31
TOOL-SPRING COMPRESSION COLAR (for use with items 29 and 30) HUS-603001862
...
32
TOOL-SPIDER PRIMARY HUS-603001859
...
33
COMMUNICATION DISPLAY MODULE HUS-603001863
...
34
COMPRESSION GUAGE AND ADAPTER HUS-603001864
...
35
CONTINUITY TESTER HUS-603001867
...
36
CUTTER, VALVE SEAT, #122 HUS-603002935
...
37
CUTTER, VALVE SEAT, #115 HUS-603002936
...
38
ADAPTER, T-WRENCH HUS-603002938
...
39
ADAPTER, T-WRENCH HUS-603002938
...
40
Cutter, Valve Seat, 60 Degree (requires item 51) (for Honda GX620 Gasoline Engines) HUS-603001875
...
41
PILOT, 6.6 MM HUS-603002939
...
42
PILOT, 6.62 MM HUS-603002940
...
43
PILOT, 6.65 MM HUS-603002941
...
44
LUBRICANT 11OZ CAN SPRAY HUS-603000001
...
45
FLYWHEEL PULLER KIT (for Kawasaki Engines) HUS-603001881
...
46
GAUGE, CARB FLOAT LEVEL (for Honda GX620 Gasoline Engines) HUS-603001883
...
47
GEAR YOKE HUS-603001886
...
48
INSERT TOOL, GOVERNOR SHAFT (for Kawasaki Engine Vehicles) HUS-603001887
...
49
ADJUSTER, HYDRAULIC BRAKE HUS-603001889
...
50
HYDROMETER HUS-603001890
...
51
INERNAL RETAINING RING PLIERS HUS-603001892
...
52
KIT, IQDM, USER, SERIES II (for electric vehicles only), (includes items 54 and 55) HUS-603002687
...
53
KIT, IQDM, OEM, SERIES II (for electric vehicles only), (includes items 54 and 55) HUS-603003369
...
54
ADAPTER, 1307 CABLE HUS-603001894
...
55
CABLE, IQDM, SERIES II HUS-603001895
...
56
CABLE, IQDM (replacement) HUS-603001896
...
57
SEALANT (transaxle case) HUS-603000607
...
58
LUBRICANT, MOLY-TEFLON,4 OZ TU HUS-603002992
...
59
TOUCH UP PAINT BEIGE HUS-603003370
...
59
TOUCH UP PAINT, BLACK HUS-603003371
...
59
TOUCH UP PAINT, BURGUNDY HUS-603003372
...
59
TOUCH UP PAINT, CLASSIC BLUE (Navy) HUS-603003373
...
59
TOUCH UP PAINT, DARK GRAY HUS-603003374
...
59
TOUCH UP PAINT, DARK GREEN HUS-603003375
...
59
TOUCH UP PAINT GRAY HUS-603001906
...
59
TOUCH UP PAINT, RED HUS-603003377
...
59
TOUCH UP PAINT, ROYAL BLUE (Pacific Blue) HUS-603003378
...
59
TOUCH UP PAINT, WHITE HUS-603003379
...
60
PAINT, GRAY - SPRAY HUS-603003380
...
61
PAINT PEN, UNDERBODY, BLACK HUS-603003381
...
62
KIT, PISTON RING COMPRESSOR HUS-603001910
...
63
PISTON RING PLIER (for Kawasaki Engines) HUS-603001911
...
64
SPECIAL-USE PULLER SET HUS-603001913
...
65
EXTERNAL SNAP RING PLIERS HUS-603001914
...
66
INTERNAL SNAP RING PLIER 9O HUS-603001915
...
67
SAFETY FIRST CARD HUS-603001916
...
68
SEAL PULLER HUS-603001917
...
69
WRENCH, SPANNER (for coil over shock front suspension vehicles only) HUS-603001918
...
70
Steering Column Bearing Press Tool HUS-603001919
...
71
TOOL-STEERING RETAINING RING HUS-603001920
...
72
PULLER, STEERING WHEEL HUS-603001921
...
73
TACHOMETER GAS/DIESEL (includes gasoline engine pick up lead only) HUS-603002007
...
74
TACHOMETER DIESEL ADAPTOR HUS-603001923
...
75
TRANS-AXLE, AXLE SEAL TOOL HUS-603001924
...
76
Transaxle Pinion Seal Tool HUS-603001925
...
77
Transmission Tool Kit HUS-603001926
...
78
Tune-Up Kit, All OHV (for Kawasaki Engines), (includes air filter, spark plug, oil filter, fuel filters), (not shown) HUS-603000005
...
79
Tune-Up Kit, Gx620 (for Honda Engines), (includes air filter, spark plug, oil filter, fuel filters), (not shown) HUS-603000035
...
80
Tune-Up Kit, D722 (for Kubota Engines), (includes air filter, oil filter, fuel filters, water separator filter), (not shown) HUS-603000040
...
81
KIT, TUNE UP, PREC FE290/350 (includes air filter, spark plug, oil filter, fuel filters), (not shown) HUS-603003613
...
82
VALVE CLEAR ADJ SCREW HOLDER HUS-603001928
...
83
DRIVER, VALVE GUIDE, 6.6. MM (for Honda GX620 Gasoline Engines) HUS-603001929
...
84
VALVE GUIDE REAMER HUS-603001930
...
85
REAMER-VALVE GUIDE (for Honda GX620 Gasoline Engines) HUS-603001931
...
86
VALVE SEAT CUTTER GUIDE HUS-603001927
...
87
VALVE SEAT CUTTER "T" WRENCH HUS-603001878
...
88
VALVE SEAT CUTTER 45 DEG 32 MM HUS-603001836
...
89
CUTTER INTAKE VALVE ST 45/30 HUS-603000100
...
90
VALVE SPRING CMPR & ADAPTER HUS-603000043
...
91
METER, WAVETEK VOLT-OHM HUS-603000038
...
92
S/G TENSIONING TOOL (For gasoline vehicles) HUS-603002787
