Husqvarna HUV 4421 DXP (2008-01) Utility Vehicle

Model: HUV 4421 DXP (2008-01)

Back To Assemblies

Save Part Not Listed?
product name

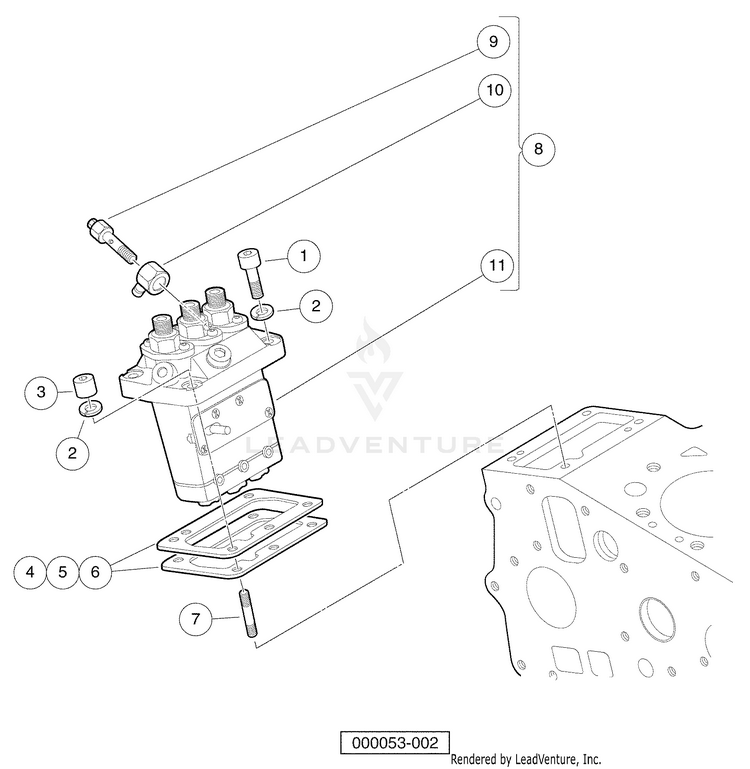

Injection Pump

...
...
1
Bolt, Hex-Head, M5 X 0.75 X HUS-603001385
...
2
WASHER HUS-603001818
...
3
Nut, Special. HUS-603001387
...
4
SHIM, INJECTION PUMP, 0.20 MM HUS-603001388
...
5
SHIM, INJECTION PUMP, 0.25 MM HUS-603001389
...
6
Shim, Injection Pump, 0.30 mm HUS-603001390
...
7
Stud, M5 X 25. HUS-603001391
...
8
ASSY-INJ PUMP (includes items 9 through 11) HUS-603001383
...
10
Joint, Eye HUS-603001384
