Husqvarna HUV 4421 DXP (2007-01) Utility Vehicle

Model: HUV 4421 DXP (2007-01)

Back To Assemblies

Save Part Not Listed?
product name

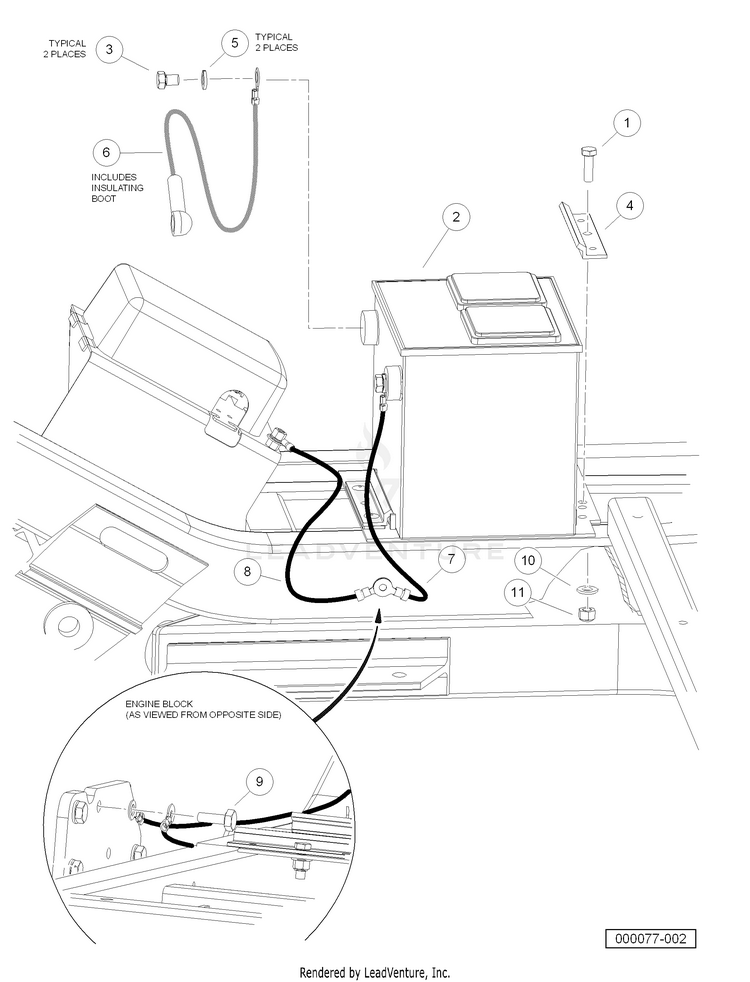

Battery - Diesel Vehicles

...
...
1
SCREW HEX CAP HUS-603000116
...
2
BATTERY, 12 VOLT HUS-603000002
...
3
SCREW HUS-603000224
...
4
CLAMP - BATTERY HUS-603000576
...
5
LOCKWASHER, 3/8 STAINLESS STL HUS-603000890
...
6
WIRE ASM, #6 RED, AWD HUS-603001050
...
7
WIRE ASM, #6 BLK, AWD, 350 HUS-603001069
...
8
WIRE ASM, #6 BLK, AWD, 325 HUS-603001070
...
9
BOLT, M10 X 1.25 X 25 LOCTITE HUS-603001191
...
10
WASHER, 5/16 TYPE A FLAT HUS-603000065
...
11
LOCKNUT, 5/16-18 NYLON INSERT HUS-603000078
