Husqvarna HUV 4421 DXP (2007-01) Utility Vehicle

Model: HUV 4421 DXP (2007-01)

Back To Assemblies

Save Part Not Listed?
product name

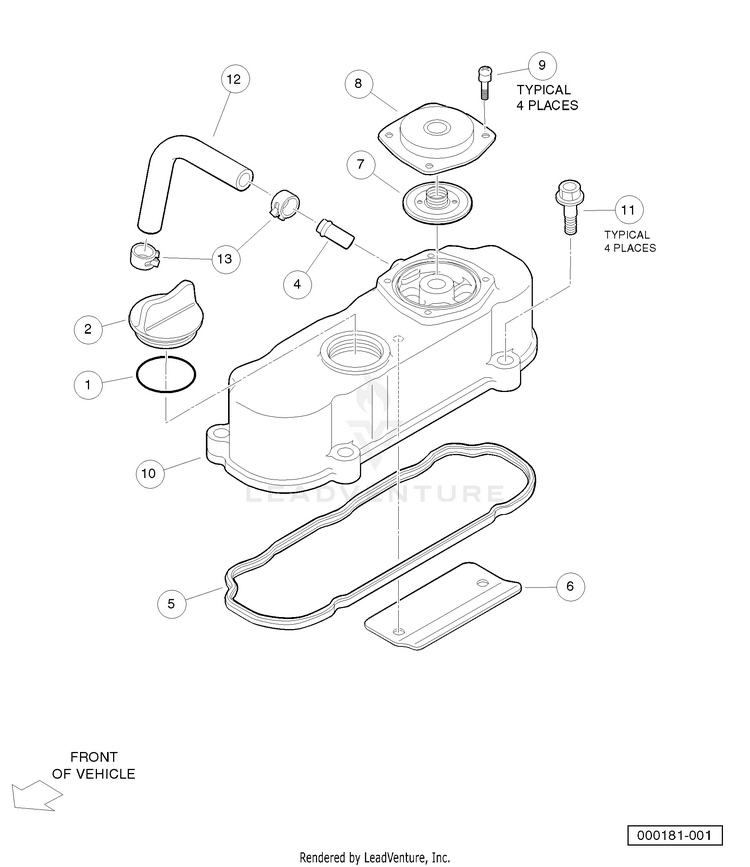

Head Cover (Diesel Engine - Closed Breather)

...
...
1
O RING, 30X36 HUS-603001406
...
2
PLUG, OIL FILLER HUS-603001407
...
3
ASSY-CYL HEAD COVER (includes items 4 through 10) HUS-603001813
...
4
PIPE-BREATHER HUS-603001828
...
5
GASKET-HEAD COVER HUS-603001823
...
6
ASSY-CYL HEAD COVER HUS-603001813
...
7
VALVE-BREATHER HUS-603001825
...
8
COVER-BREATHER HUS-603001826
...
9
SCREW-BREATHER HUS-603001827
...
11
BOLT-CYL HEAD COVER HUS-603001829
...
12
TUBE, BREATHER HUS-603001830
...
13
CLAMP-BRTHR TUBE HUS-603001831
