Husqvarna HUV 4421 DXP (2007-01) Utility Vehicle

Model: HUV 4421 DXP (2007-01)

Back To Assemblies

Save Part Not Listed?
product name

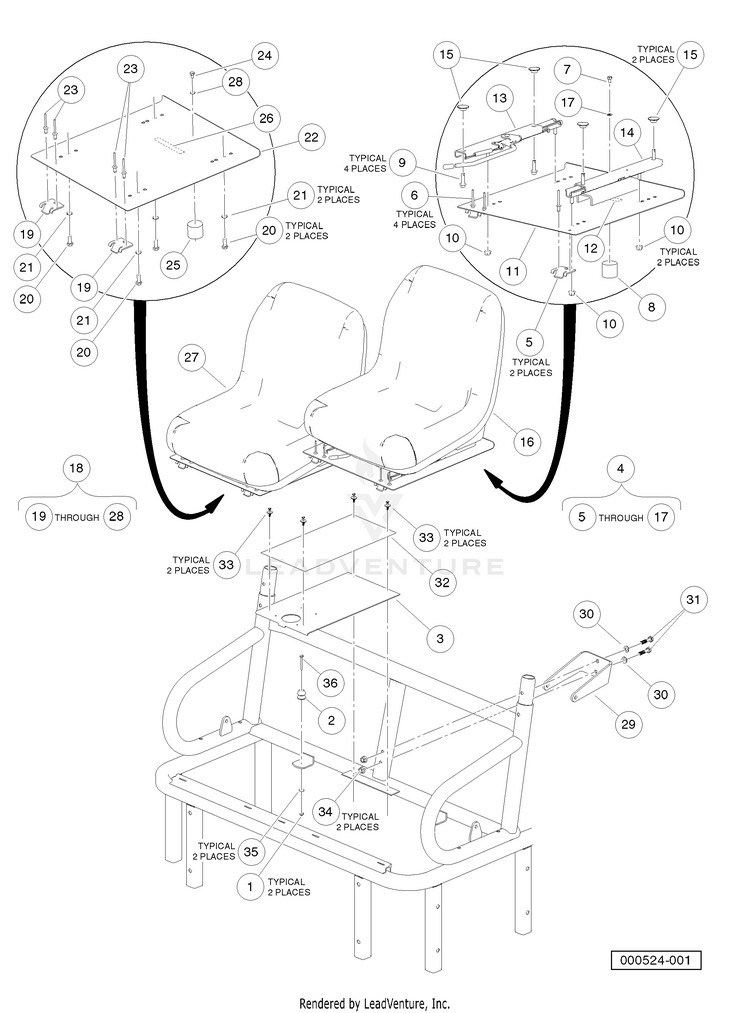

Bucket Seats - Gray

...
...
1
LOCKNUT, M6-1.00 NYLON INSERT HUS-603000558
...
2
SEAT HOLDER BASE HUS-603000773
...
3
PAN, CENTER, CLOSEOUT HUS-603001049
...
4
ASM, BUCKET SEAT ADJUSTABLE (includes items 5 through 17) HUS-531308251
...
5
HINGE PLATE HUS-603000125
...
6
RIVET, 1/4 X .438 BLIND HUS-603000736
...
7
SCREW, 6M-1.00 X 10MM HEX HEAD HUS-603000774
...
8
SEAT HOLDER CUP HUS-603000777
...
9
BOLT - FLANGED HD, M8 X 30.0 HUS-603000875
...
10
NUT FLG, M8 X 1.25 MECH DEF HUS-603001298
...
11
PAN, SEAT, DRIVER ASM HUS-603001093
...
12
DECAL, WARNING HOT SURFACE HUS-603001102
...
13
ADJUSTER, FORE/AFT HUS-603001137
...
14
ADJUSTER, SLIDER HUS-603001138
...
15
WASHER, BELL HUS-603001145
...
16
SEAT, BUCKET, GRAY HUS-603004079
...
17
LOCKWASHER, 1/4 HELICAL SPLIT HUS-603000058
...
19
HINGE PLATE HUS-603000125
...
20
SCREW, M8-125 X 22 HEX GR.8.8 HUS-603000579
...
21
LOCKWASH HUS-603000184
...
22
PAN, SEAT - PASSENGER HUS-603000689
...
23
RIVET, 1/4 X .438 BLIND HUS-603000736
...
24
SCREW, 6M-1.00 X 10MM HEX HEAD HUS-603000774
...
25
SEAT HOLDER CUP HUS-603000777
...
26
DECAL, WARNING HOT SURFACE HUS-603001102
...
27
SEAT, BUCKET, GRAY HUS-603004079
...
28
LOCKWASHER, 1/4 HELICAL SPLIT HUS-603000058
...
29
BRKT, SEATBELT, BOLT-ON HUS-603001585
...
30
WASHER, HARD, M10, ZN-NI/BLK HUS-603001673
...
31
BOLT, M10 X 45, ZN-NI/BLK (Black) HUS-603001760
...
32
COVER, CENTER CONSOLE HUS-603003464
...
33
SCREW, TUFLOK PANEL, 1/4 HUS-603000695
...
34
NUT, FLANGED, M10 X 1.5, BLACK HUS-603003475
...
35
WASHER 1/4 FLAT HUS-603000054
...
36
BOLT, M6 X 1 X 45 HUS-603000452
