Husqvarna HUV 4421 DXP (2007-01) Utility Vehicle

Model: HUV 4421 DXP (2007-01)

Back To Assemblies

Save Part Not Listed?
product name

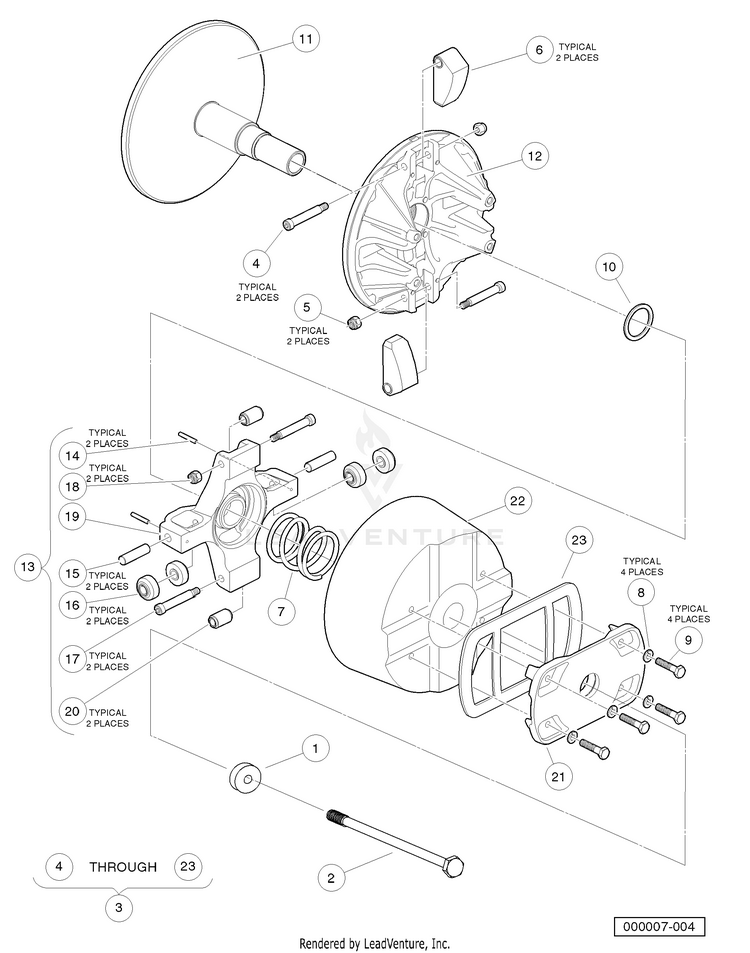

Drive Clutch - Diesel Vehicles

...
...
1
WASHER, STEPPED, CVT PRIMARY HUS-603000938
...
2
BOLT, M10X1.5X160 HUS-603001294
...
3
KIT, SERVICE, CVT, DSL, 3-POST (includes items 4 through 23) HUS-579753801
...
4
SCREW, SHLDER HEX, .312 X 1.75 HUS-603001611
...
5
NUT, LOCK HEX, 1/14-20, FLEXLC HUS-603001613
...
6
SUB ASSY, WT CLUTCH, DIESEL HUS-603001614
...
7
SPRING, COMPRESSION, PRIMARY HUS-603001616
...
8
WASHER, LOCK, H SPRING, 1/4 HUS-603001617
...
9
SCREW, CAP, HEX HD, 1/4 X 1.25 HUS-603001618
...
10
SHIM, 1.63 X 1.33 HUS-603001619
...
14
PIN, SPRING SLOTTED,1.25 X 1.0 HUS-603001608
...
15
PIN, DOWEL, .375 X 1.50 HUS-603001609
...
16
ROLLER, TORQUE, DIESEL HUS-603001610
...
17
SCREW, SHLDER HEX, .312 X 1.75 HUS-603001611
...
18
NUT, LOCK HEX, 1/14-20, FLEXLC HUS-603001613
...
20
SUB ASSY, ROLLER WEIGHT HUS-603001612
...
22
COVER, CLUTCH, 4X4 HUS-531308140
...
23
GASKET, COVER, CLUTCH, 4X4 HUS-531308139
