Husqvarna HUV 4421 DXP (2007-01) Utility Vehicle

Model: HUV 4421 DXP (2007-01)

Back To Assemblies

Save Part Not Listed?
product name

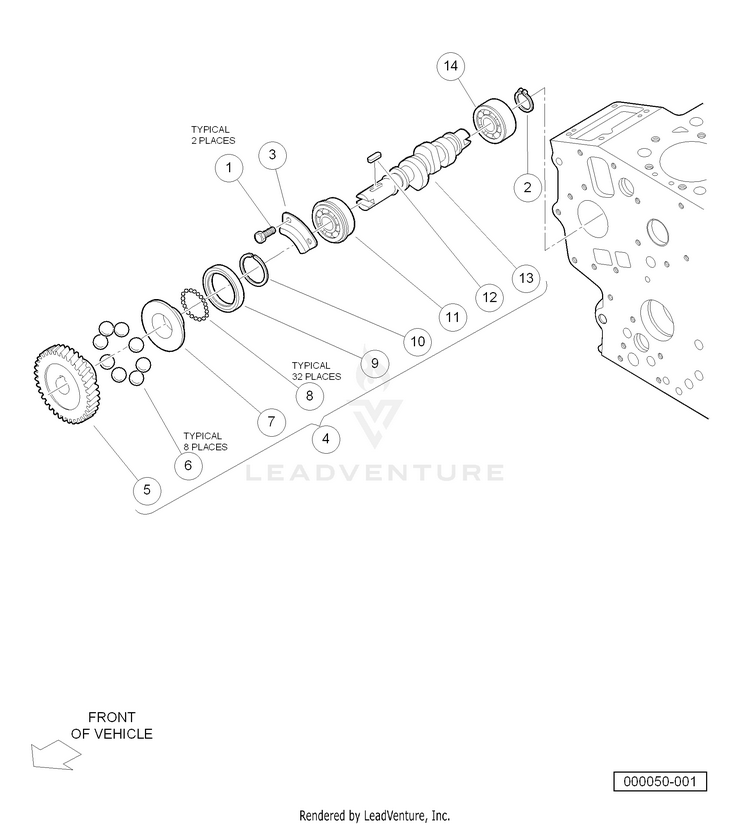

Shaft (Diesel Engine - Closed Breather)

...
...
1
BOLT, D722, CAM END HUS-603001228
...
2
CIRCLIP, EXTERNAL HUS-603001232
...
3
STOPPER, FUEL, C/SHAFT HUS-603001233
...
4
ASSY, FUEL CAMSHAFT (includes items 5 through 13) HUS-603001723
...
5
GEAR, INJECTION PUMP HUS-603001222
...
6
BALL, INJECTION PUMP HUS-603001223
...
7
SLEEVE, GOVERNOR HUS-603001224
...
8
BALL, GOVERNOR HUS-603001225
...
9
CASE, GOVERNOR BALL HUS-603001226
...
10
CIR-CLIP, GOV. SLEEVE HUS-603001227
...
11
BEARING, BALL, LEFT HUS-603001229
...
12
KEY, FEATHER, SHORT CAMSHAFT HUS-603001230
...
13
CAMSHAFT, FUEL, SHORT HUS-603001231
...
14
BEARING, BALL, FUEL CAM REAR HUS-603001724
