Husqvarna HUV 4421 DXP (2006-11) Utility Vehicle

Model: HUV 4421 DXP (2006-11)

Back To Assemblies

Save Part Not Listed?
product name

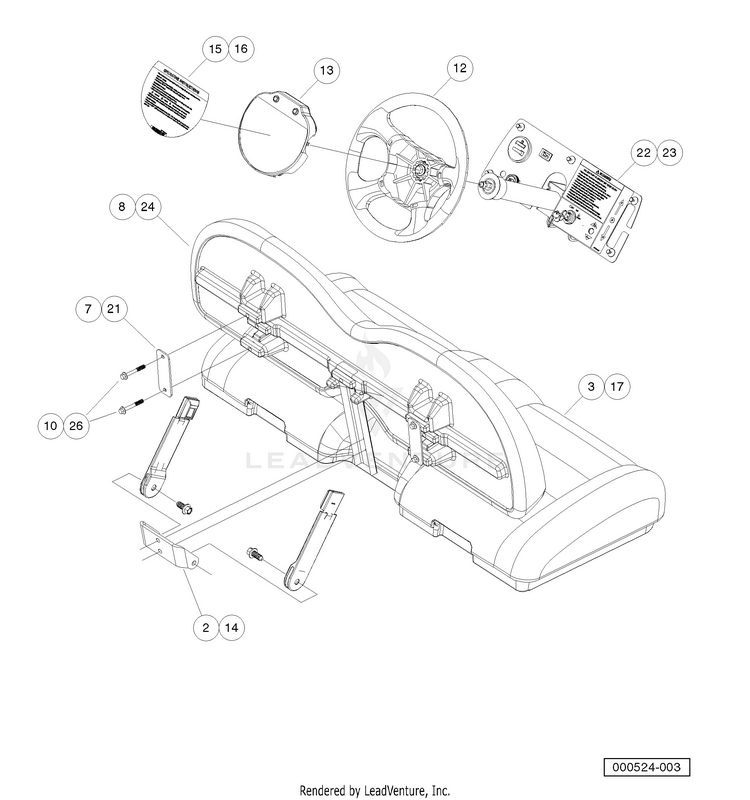

Bench Seat Conversion Kit

...
...
1
KIT, BENCH SEAT, SEAT ONLY (includes items 2 through 10) HUS-531308122
...
2
BRACKET, SEAT BELT, BENCH HUS-531308118
...
3
KIT BENCH SEAT GRAY (includes items 4 through 6) HUS-574503301
...
4
HINGE PLATE HUS-603000125
...
6
BOLT FLG BLK, M8 X 25, LOCTITE HUS-603003457
...
7
BRACKET, SEAT BACK, AWD HUS-531308121
...
8
KIT BENCH SEAT GRAY HUS-574503301
...
9
Instructions, Bench Seat HUS-603003471
...
10
BOLT, M8 X 55, FLANGED, BLACK HUS-531307417
...
11
KIT, BENCH SEAT, COMPLETE (includes items 12 through 26) HUS-531308124
...
13
CENTER, PLATE, STEERING WHEEL HUS-603003469
...
14
BRACKET, SEAT BELT, BENCH HUS-531308118
...
15
DEACL,OPER INSTR HUS-531307136
...
16
DECAL, OPER INSTR, AWD SE GAS HUS-603003470
...
17
KIT BENCH SEAT GRAY (includes items 18 through 20) HUS-574503301
...
18
HINGE PLATE HUS-603000125
...
20
BOLT FLG BLK, M8 X 25, LOCTITE HUS-603003457
...
21
BRACKET, SEAT BACK, AWD HUS-531308121
...
22
DECAL, WARNING, IP AWD GAS HUS-531307125
...
23
DECAL, WRN HUS-531307146
...
24
KIT BENCH SEAT GRAY HUS-574503301
...
25
Instructions, Bench Seat HUS-603003471
...
26
BOLT, M8 X 55, FLANGED, BLACK HUS-531307417
