Husqvarna HUV 4421 DXP (2006-11) Utility Vehicle

Model: HUV 4421 DXP (2006-11)

Back To Assemblies

Save Part Not Listed?
product name

Dash

...
...
2
SCREW, 1/4-20 X 1.50 HX HD CAP HUS-603003153
...
3
SCREW, #8 X .500 HX HD HI-LO HUS-603000491
...
4
CAP 1/4" PLASTIC SCREW HEAD HUS-603000729
...
5
WASHER 1/4 ID SCALLOPED PLAST HUS-603000737
...
6
SCREW-M8 X 1.25 30, TRI, HX F HUS-603000869
...
7
SCREW,M6,TORX,INTERLOCK,THREAD HUS-603003443
...
8
M8-1.25 X 80 SEMS HUS-603003585
...
9
WASHER HARD, M10 HUS-603001174
...
10
LOCK NUT, FLG M8 X 1.25 NYLON HUS-603001308
...
11
DASH, DESIGN A HUS-603003444
...
12
SUPPORT, STRUCTURAL HUS-603003446
...
13
CUP HOLDER, UTILITY HUS-603003447
...
14
ASM, BRUSH, FNR (includes items 15 and 16) HUS-603004408
...
15
ASM, BRUSH, FNR HUS-603004408
...
16
ASM, BRUSH, FNR HUS-603004408
...
17
BRACKET, HOOD SUPPORT HUS-603003451
...
18
ROD, CONNECTION, DASH HUS-603004082
...
19
LOCKNUT, 1/4-20 NYLON INSERT HUS-603000089

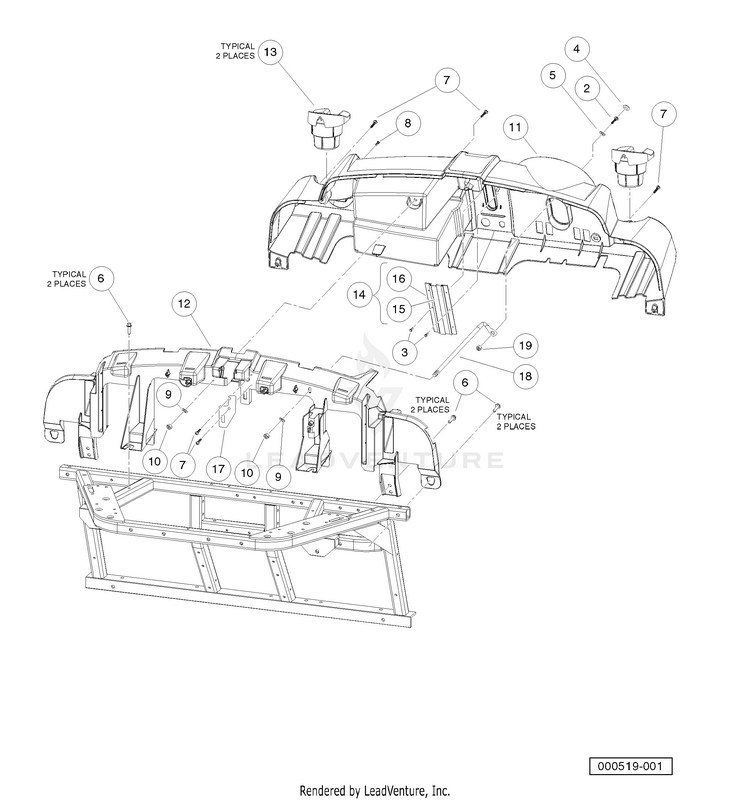

Schematic Image Zoomed
