Husqvarna HUV 4414 XP (2009-05) Utility Vehicle

Model: HUV 4414 XP (2009-05)

Back To Assemblies

Save Part Not Listed?
product name

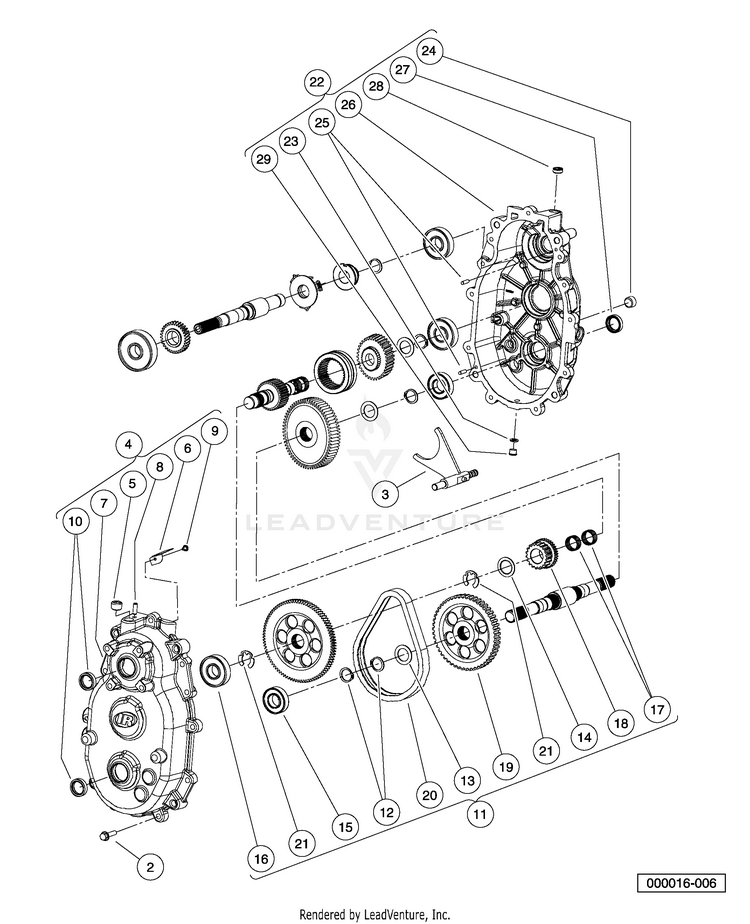

Transmission - Diesel Vehicles

...
...
1
TRANS, PARALLEL SHAFT, DIESEL (includes items 2 through 22) HUS-531307440
...
2
SCREW, HEX FLANGE, M8 X 35 HUS-603001622
...
3
FORK, WA, TRANS HUS-603001652
...
4
ASM-GEAR CASE REAR (includes items 5 through 10) HUS-603001780
...
5
PLUG, SQUARE SKIT, 1/12-14,PTF HUS-603001628
...
6
OIL, DEFLECTOR HUS-603001643
...
8
VENT, TRANS HUS-603001653
...
9
SCREW, TAPPING #10-24 X .375 HUS-603001654
...
10
SEAL, TRIPLE, 25 X 35 X 7.8 HUS-603001655
...
11
KIT-REVERSE GEAR REPAIR (includes items 12 through 21) HUS-603001787
...
12
RING, RETAINING, BASIC EXTERNA HUS-603001642
...
13
WASHER, THRUST, 1.007 X .062 HUS-603001645
...
14
WASHER, 26.231 X 39.167 X 1.57 HUS-603001647
...
15
BEARING, BALL, 6205 C3 HUS-603001648
...
16
BEARING, BALL, 6305 C3 HUS-603001649
...
17
BEARING, NEEDLE, SPLIT CAGE HUS-603001651
...
21
RING, RETAINING, E-RING, PO-10 HUS-603001658
...
22
ASM, CASE, GEAR, FRONT (includes items 23 through 29) HUS-603003570
...
23
WASHER, .625 X .382 X .60 HUS-603001624
...
24
PLUG, SQUARE SKIT, 1/12-14,PTF HUS-603001628
...
25
PIN, DOWEL, 6 X 20 HUS-603001641
...
27
SEAL, TRIPLE, 25 X 35 X 7.8 HUS-603001655
...
28
SEAL, DUAL LIP HUS-603001681
...
29
PLUG, 3/4-16 HUS-603003569
