Husqvarna HUV 4414 XP (2009-05) Utility Vehicle

Model: HUV 4414 XP (2009-05)

Back To Assemblies

Save Part Not Listed?
product name

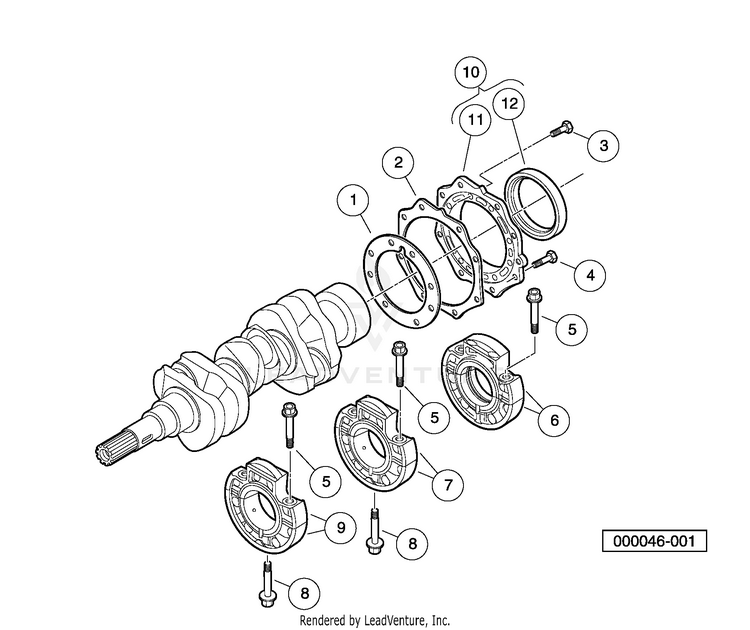

Main Bearing Case

...
...
1
GASKET, BEARING CASE HUS-603001262
...
2
GASKET, COVER HUS-603001263
...
3
BOLT, M6 X 1 X 20 HUS-603001266
...
4
BOLT, M6 X 1 X 22 HUS-603001267
...
5
BOLT, BEARING CASE, TOP HUS-603001274
...
6
ASSY CASE, MAIN BRG, FIRST HUS-603001278
...
7
ASSY CASE, MAIN BRG, SEC HUS-603001279
...
8
BOLT, BEARING CASE, BOTTOM HUS-603001280
...
9
ASSY CASE, MAIN BRG, THIRD HUS-603001281
...
10
ASSY, COVER, BEARING CASE (includes items 11 and 12) HUS-603001718
...
11
COVER, BEARING CASE HUS-603001264
...
12
SEAL, OIL HUS-603001265
