product name

Husqvarna HUV 4414 XP (2009-05) Utility Vehicle

Model: HUV 4414 XP (2009-05)

Back To Assemblies

Save Part Not Listed?
product name

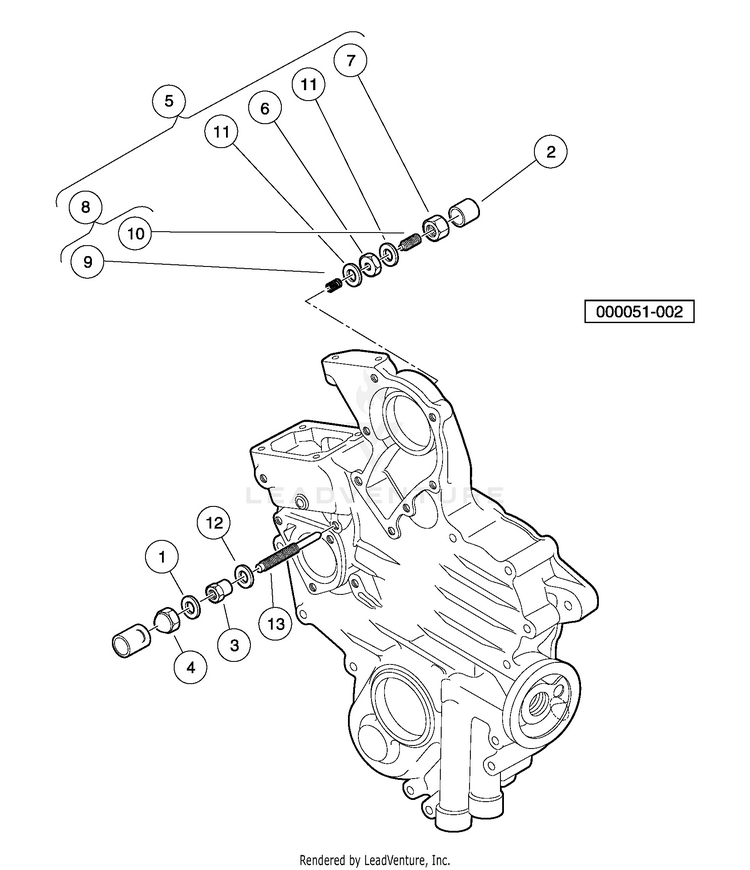

Idle Apparatus

...
...
1
GASKET, 6X10 HUS-603001369
...
2
CAP, BOLT ASSY HUS-603001371
...
3
NUT, LOCK, SPECIAL HUS-603001381
...
4
NUT, SPECIAL HUS-603001382
...
5
ASSY,IDLE APPARATUS (includes items 6 through 11) HUS-603001725
...
6
NUT, M8 HUS-603001370
...
7
NUT, M8 HUS-603001372
...
8
SPRING, IDLE APPARATUS (includes items 9 and 10) HUS-603001726
...
11
GASKET, IDLE APPARATUS, REAR HUS-603002800
...
12
GASKET, IDLE APPARATUS, FRONT HUS-603001728
...
13
BOLT, IDLE ADJUSTING, D722 CB HUS-603002801
Schematic Image Zoomed
