Husqvarna HUV 4414 XP (2009-05) Utility Vehicle

Model: HUV 4414 XP (2009-05)

Back To Assemblies

Save Part Not Listed?
product name

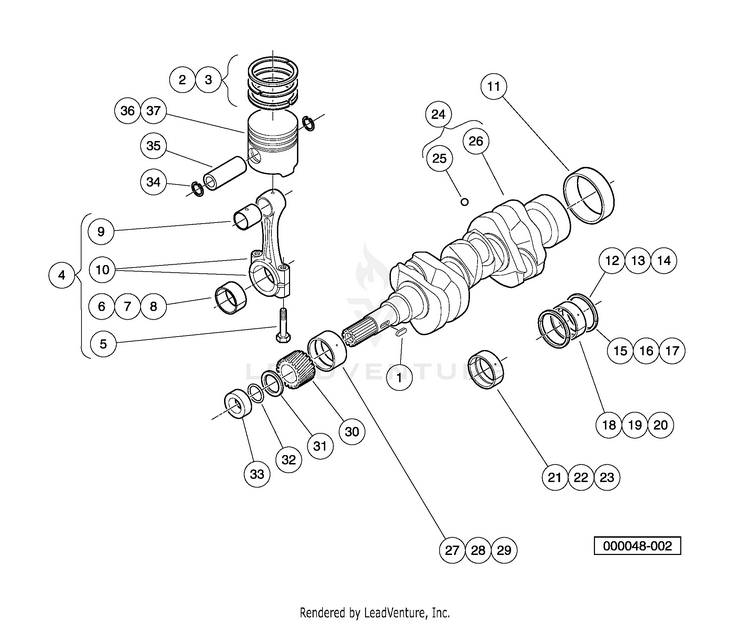

Piston and Crankshaft

...
...
1
KEY, FEATHER, SHORT CAMSHAFT HUS-603001230
...
2
ASSY PISTON RING, D722 STD HUS-603001256
...
3
ASSY PISTON RING, D722 + .025 HUS-603001257
...
4
ASSY, CONNECTING ROD (includes items 5 through 10) HUS-603001258
...
5
BOLT, CONNECTING ROD HUS-603001259
...
6
METAL, CRANK, ROD, D722, STD HUS-603001336
...
7
METAL, CRANK, ROD, D722, .020 HUS-603001337
...
8
METAL, CRANK, ROD, D722, .040 HUS-603001338
...
9
BUSHING, PISTON PIN, D722 HUS-603001758
...
11
SLEEVE, CRANKSHAFT HUS-603001261
...
12
METAL, CRANK, 0 SIDE, STD HUS-603001268
...
13
METAL, CRANK, 0 SIDE + .020 HUS-603001269
...
14
METAL, CRANK, 0 SIDE, +.040 HUS-603001270
...
15
METAL, CRANK, 1 SIDE, STD HUS-603001271
...
16
METAL, CRANK, 1 SIDE, +.020 HUS-603001272
...
17
METAL, CRANK, I SIDE, +.040 HUS-603001273
...
18
METAL, CRANK, MAIN, REAR STD HUS-603001275
...
19
METAL, CRANK, MAIN, REAR-.020 HUS-603001276
...
20
METAL, CRANK, MAIN, REAR-.040 HUS-603001277
...
21
METAL, CRANK, MAIN, MID STD HUS-603001282
...
22
METAL, CRANK, MAIN, MID+.020 HUS-603001283
...
23
METAL, CRANK, MAIN, MID+.040 HUS-603001284
...
24
COMP, CRANKSHAFT (includes items 25 and 26) HUS-603001285
...
25
BALL, CRANKSHAFT HUS-603001260
...
27
METAL, CRANK, D722, FRNT, STD HUS-603001328
...
28
METAL, CRANK, 722, FRNT, -.020 HUS-603001329
...
29
METAL, CRANK, 722, FRNT, -.040 HUS-603001330
...
30
GEAR, CRANK HUS-603001331
...
31
SLINGER, OIL HUS-603001332
...
32
O RING, 23X26 HUS-603001333
...
33
COLLAR, CRANKSHAFT HUS-603001334
...
34
CIRCLIP, PISTON PIN HUS-603001339
...
35
PIN, PISTON HUS-603001340
...
36
PISTON, D722, STD HUS-603001719
...
37
PISTON, D722, +0.25 HUS-603001720
