Husqvarna HUV 4213 (2006-11) Utility Vehicle

Model: HUV 4213 (2006-11)

Back To Assemblies

Save Part Not Listed?
product name

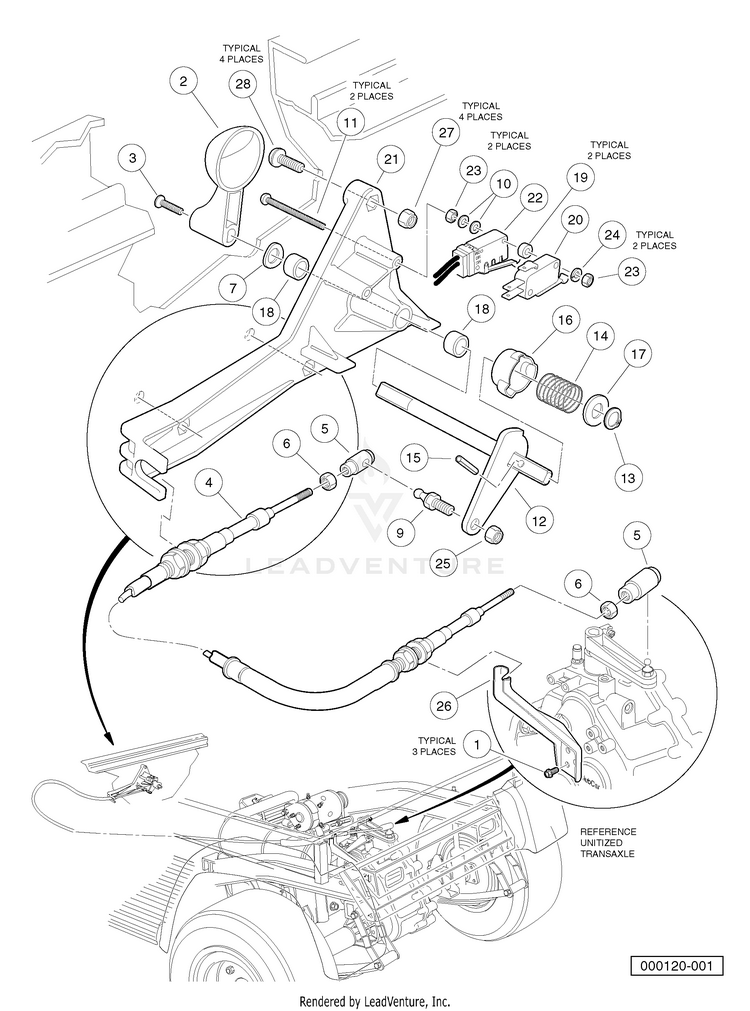

FORWARD/REVERSE SHIFTER ASSEMBLY

...
...
17
WASHER HUS-603000204
...
27
LOCKNUT, 1/4-20 NYLON INSERT HUS-603000089
...
6
NUT, #10-32 HEX HUS-603000084
...
15
PIN HUS-603000179
...
12
F&R BELL CRANK WELDMENT HUS-603000176
...
13
RING HUS-603000177
...
24
LOCKWASH, # 4 HELICAL SPLIT HUS-603000087
...
20
SWITCH, LIMIT HUS-603000235
...
22
SWITCH ASSY, SEALED LIMITER HUS-603000621
...
19
WASHER HUS-603000234
...
21
SHIFTER BASE HUS-603000289
...
18
BUSHING, SECONDARY WGHT SPLIT HUS-603000215
...
14
SPRING, FNR CAM HUS-603000178
...
7
WASHER, WAVE HUS-603000282
...
1
SCREW HX TYP TT HUS-603000134
...
9
STUD HUS-603000117
...
10
WASHER HUS-603000140
...
11
SCREW HUS-603000146
...
4
TRAN'S SHIFT CABLE ASM CA II HUS-603000258
...
28
SCREW 1/4-20 X .75 HUS-603000090
...
23
NUT HEX MACHINE HUS-603000086
...
8
F & R SHIFTER ASSEMBLY HUS-603000378
...
16
NEUTRAL LOCKOUT CAM KIT HUS-603000209
...
2
HANDLE, FNR SWITCH HUS-603000162
...
3
SCREW HUS-603000239
...
25
LOCKNUT, 1/4-28 NYLON INSERT HUS-603000094
...
5
JOINT, #10-32 BALL HUS-603000137
