Husqvarna HUV 4210 GXP (2006-11) Utility Vehicle

Model: HUV 4210 GXP (2006-11)

Back To Assemblies

Save Part Not Listed?
product name

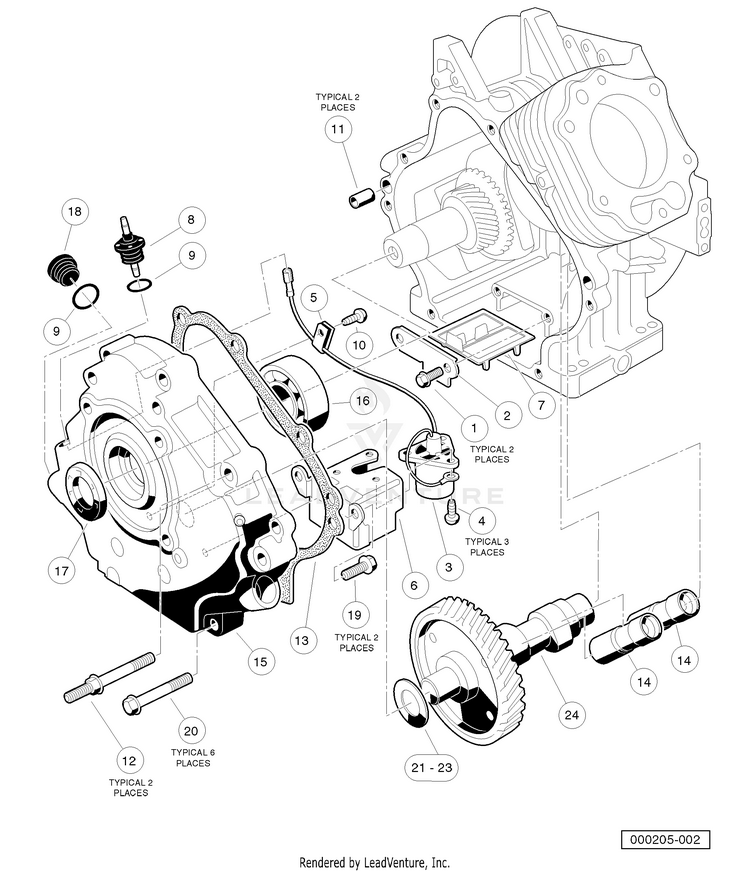

FE350 Engine without ACR - Crankcase, Camshaft, and Oil Sensor

...
...
1
BOLT, FLANGED HUS-603000307
...
2
OIL FILTER SCREEN PLATE HUS-603000313
...
3
SENSOR, FE290 OIL LEVEL HUS-603000321
...
4
SCREW, PAN, CROSS HUS-603000322
...
5
CLAMP HUS-603000327
...
6
BRACKET, SWITCH, OIL LEVEL HUS-603003122
...
7
OIL FILTER SCREEN HUS-603000332
...
8
CONNECTOR - CORD HUS-603000334
...
9
O-RING HUS-603000336
...
10
SCREW HUS-603000339
...
11
PIN HUS-603000347
...
12
BOLT HUS-603000360
...
13
GASKET - CRANKCASE COVER HUS-603000397
...
14
ADJUSTER, LASH HUS-603000401
...
15
COVER CRANKCASE HUS-603003171
...
16
BEARING, BALL HUS-603000418
...
17
SEAL - OIL HUS-603003172
...
18
PLUG HUS-603000425
...
19
BOLT HUS-603003174
...
20
SCREW, M8-1.25 X 45MM HEX HUS-603000428
...
21
SHIM - T=0.3 HUS-603000476
...
22
SHIM - T=0.4 HUS-603000477
...
23
SHIM - T=0.5 HUS-603000478
...
24
CAMSHAFT, FE350 WO/ACR 44T HUS-603003265
