Husqvarna HUV 4210 GXP (2006-11) Utility Vehicle

Model: HUV 4210 GXP (2006-11)

Back To Assemblies

Save Part Not Listed?
product name

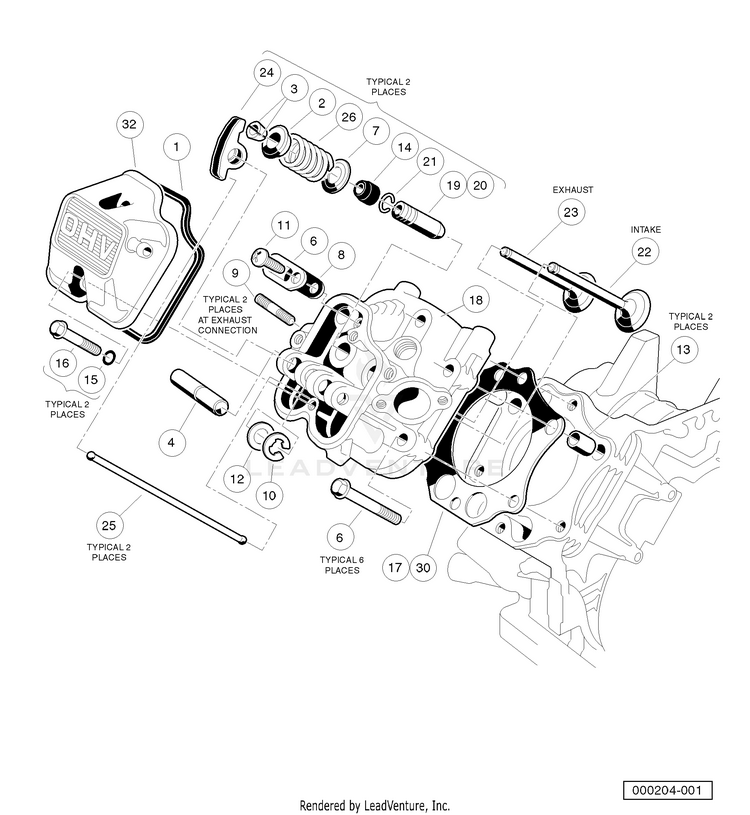

FE350 Engine - Cylinder Head

...
...
1
GASKET, ROCKER CASE HUS-603000296
...
2
RETAINER - VALVE SPRING HUS-603000304
...
3
COLLET HUS-603000305
...
4
SHAFT - ROCKER HUS-603000306
...
5
BOLT, FLANGED HUS-603000311
...
6
PLATE HUS-603000315
...
7
SEAT, SPRING HUS-603000316
...
8
VALVE HUS-603000318
...
9
STUD, M8-1.25 2-ENDED HUS-603000320
...
10
CIRCLIP - TYPE - E HUS-603000330
...
11
SCREW HUS-603000339
...
12
WASHER, 12.1X19X1.8 HUS-603000342
...
13
PIN HUS-603000346
...
14
SEAL, OIL HUS-603000348
...
15
O-RING HUS-603000349
...
16
BOLT, 6X35 HUS-603000359
...
17
GASKET - HEAD HUS-603003164
...
18
FE350 CYLINDER HEAD ASSEMBLY (includes items 19 through 21) HUS-603003165
...
19
GUIDE, VALVE, EXHAUST HUS-603003124
...
20
GUIDE, VALVE, INTAKE HUS-603000331
...
21
SNAP RING HUS-603000343
...
22
VALVE - INTAKE HUS-603000398
...
23
VALVE - EXHAUST HUS-603000399
...
24
ARM - ROCKER HUS-603000400
...
25
ROD - PUSH HUS-603000404
...
26
SPRING - ENGINE VALVE HUS-603000413
...
27
GASKET KIT, FE350 (includes items 28 through 31) HUS-603003256
...
28
GASKET, ENGINE TO INSULATOR Item 28 is not a component of the FE350 engine. HUS-603000299
...
29
GASKET, FE350 EXHAUST HUS-603002993
...
30
GASKET - HEAD HUS-603003164
...
31
GASKET - CRANKCASE COVER HUS-603000397
...
32
CASE, ROCKER -W/O LOGO FE290 HUS-603000301
