Husqvarna HUV 4210 GXP (2006-11) Utility Vehicle

Model: HUV 4210 GXP (2006-11)

Back To Assemblies

Save Part Not Listed?
product name

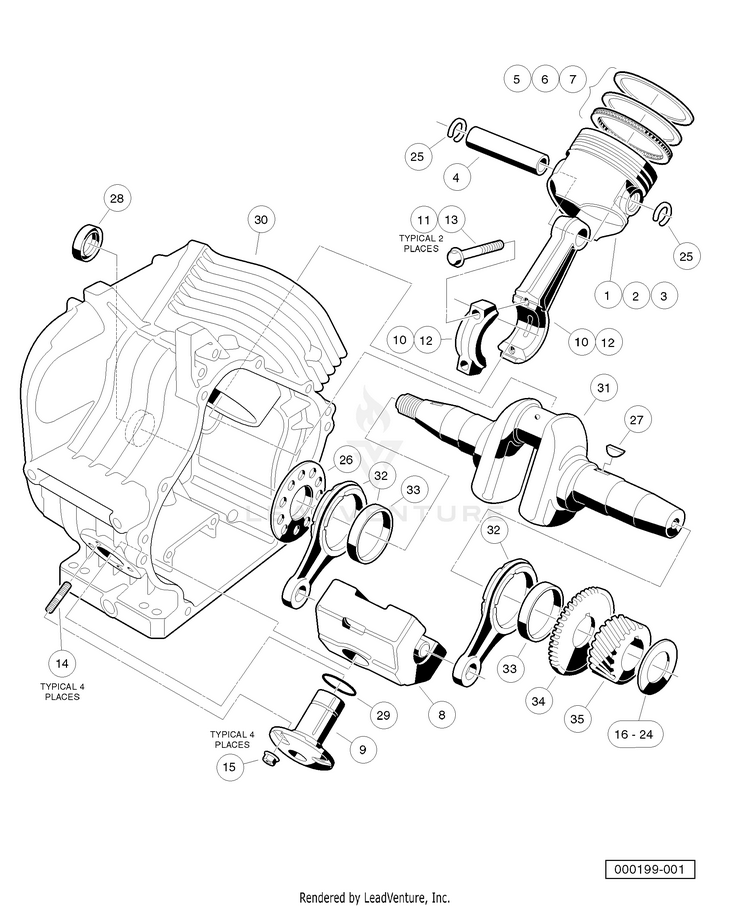

FE290 Engine - Crankcase and Crankshaft

...
...
1
PISTON, ENGINE STD OHV HUS-603003107
...
2
PISTON, ENGINE .25MM OVER HUS-603003108
...
3
PISTON, ENGINE .50MM OVER HUS-603003109
...
4
PIN - PISTON HUS-603003110
...
5
RING-SET-PISTON STD HUS-603003111
...
6
RING-SET-PISTON .25MM OVER HUS-603003112
...
7
RING-SET-PISTON .50MM OVER HUS-603003113
...
8
WEIGHT, COUNTER - BALANCE HUS-603003114
...
9
SHAFT, GUIDE, COUNTER-BALANCE HUS-603000312
...
10
ASM, CONNECTING ROD STD (includes item 11) HUS-603003116
...
11
BOLT HUS-603003121
...
12
ASM, CONNECTING ROD 0.5MM U/S (includes item 13) HUS-603003117
...
13
BOLT HUS-603003121
...
14
STUD, 6X14 HUS-603000338
...
15
NUT HUS-603000341
...
16
SHIM, CRANKSHAFT T=1.13 HUS-603003136
...
17
SHIM, CRANKSHAFT T=1.18 HUS-603003137
...
18
SHIM, CRANKSHAFT T=1.23 HUS-603003138
...
19
SHIM, CRANKSHAFT T=1.28 HUS-603003139
...
20
SHIM, CRANKSHAFT T=1.33 HUS-603003140
...
21
SHIM, CRANKSHAFT T=1.38 HUS-603003141
...
22
SHIM, CRANKSHAFT T=1.43 HUS-603003142
...
23
SHIM, CRANKSHAFT T=1.48 HUS-603003143
...
24
SHIM, CRANKSHAFT T=1.53 OHV HUS-603003144
...
25
RING, SNAP HUS-603003145
...
26
SPACER HUS-603003146
...
27
KEY HUS-603000345
...
28
SEAL, OIL HUS-603003149
...
29
O-RING HUS-603000351
...
30
CRANKCASE COMPLETE, FE290 CW (cw) HUS-603003225
...
31
CRANKSHAFT, FE290 LH THREAD (includes items 32 through 35) HUS-603003232
...
32
ROD (includes item 33) HUS-603003123
...
33
BEARING , PLANE OHV HUS-603003150
...
34
GEAR, SPUR HUS-603003130
...
35
GEAR, HELICAL HUS-603003131
