Husqvarna HUV 4210 GXP (2006-11) Utility Vehicle

Model: HUV 4210 GXP (2006-11)

Back To Assemblies

Save Part Not Listed?
product name

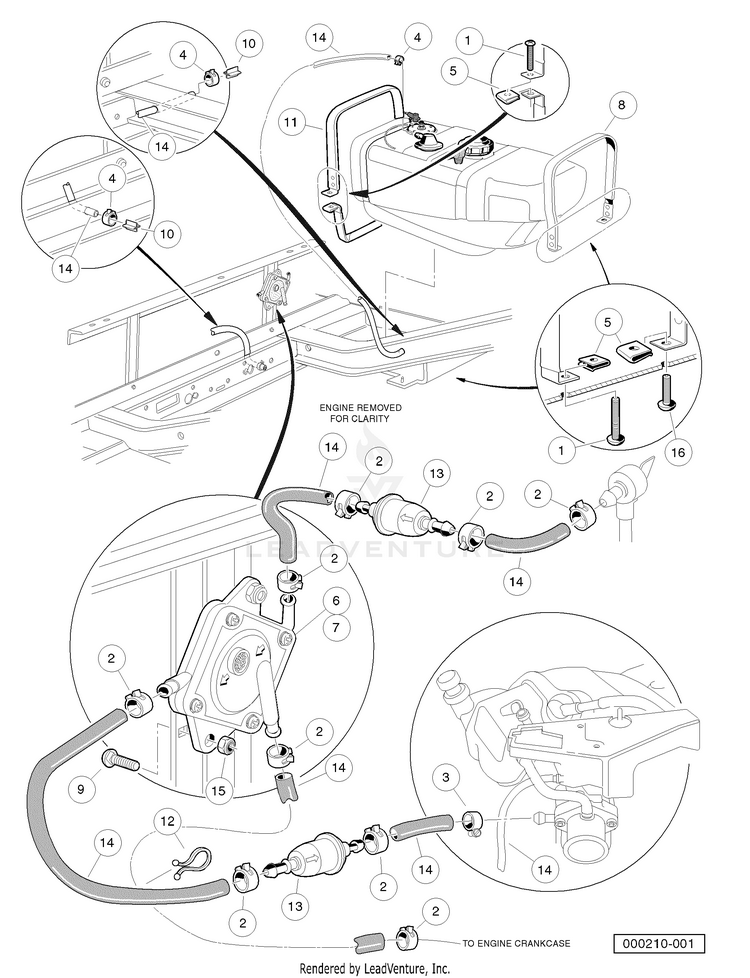

Fuel System

...
...
1
SCREW PHL TRUSS HUS-603000131
...
2
CLAMP HUS-603000149
...
3
LAMP, 3/8" S.S HOSE (screwtype) HUS-603000181
...
4
CLAMP HUS-603000185
...
5
NUT, 1/4-20 SPEED HUS-603000210
...
6
PUMP, IMPULSE FUEL HUS-603000230
...
7
SQ IMPULSE PUMP REBUILD KIT HUS-603000231
...
8
FUEL STRAP ASSEMBLY REAR HUS-603000237
...
9
BOLT, 1/4-20 X 1.0 RD HD SQ NK HUS-603003625
...
10
VENT BARB HUS-603000503
...
11
FUEL STRAP ASSY, FRONT HUS-603000611
...
12
CLAMP, PLASTIC TIE HUS-603000624
...
13
FILTER FUEL 30 MICRON HUS-603000008
...
14
HOSE, FUEL, 1/4SAEJ1737 BULK HUS-531309542
...
15
LOCKNUT, 1/4-20 NYLON INSERT HUS-603000089
...
16
SCREW 1/4-20 X .75 HUS-603000090
Schematic Image Zoomed
