Husqvarna HUV 4210 GXP (2006-11) Utility Vehicle

Model: HUV 4210 GXP (2006-11)

Back To Assemblies

Save Part Not Listed?
product name

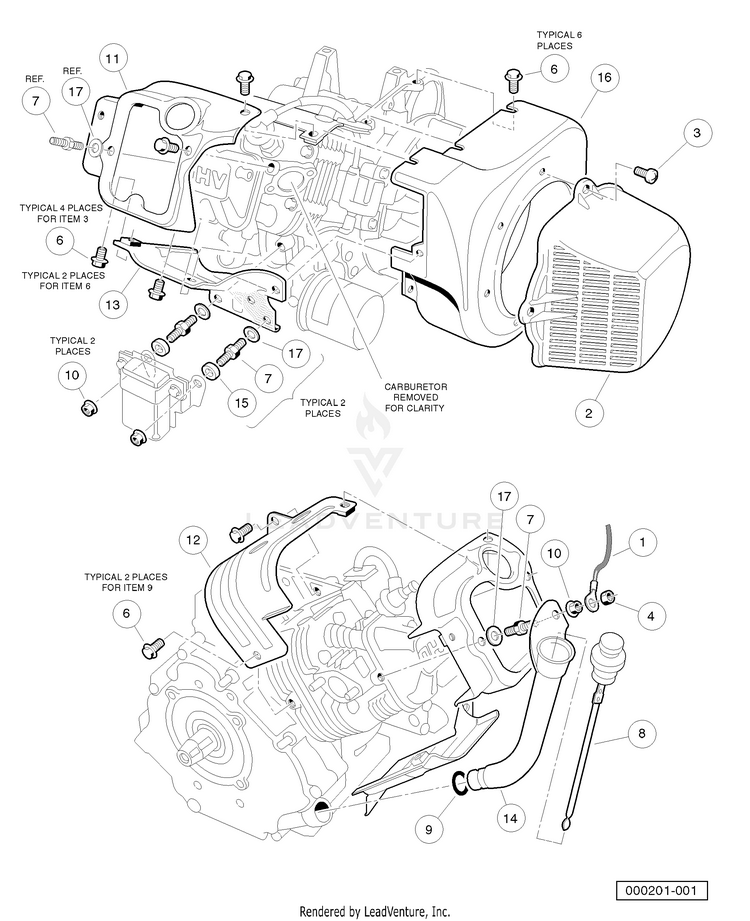

FE350 Shrouds and Brackets

...
...
1
WIRE ASM HUS-603000247
...
2
SHROUD, FAN HUS-603000265
...
3
SCREW, M6-1.00 X 10MM PAN HD HUS-603000274
...
4
LOCKNUT, M6-1.00 NYLON INSERT HUS-603000558
...
5
ENGINE, FE350 (CW) W/O CR (includes items 6 through 17) FE350 engine component listings span several pages. HUS-603003238
...
6
BOLT, FLANGED HUS-603000309
...
7
BOLT HUS-603000328
...
8
DIPSTICK HUS-603000333
...
9
O-RING HUS-603000337
...
10
NUT HUS-603000341
...
11
SHROUD ENGINE HUS-603000414
...
12
SHROUD - ENGINE HUS-603000415
...
13
SHROUD ENGINE HUS-603000416
...
14
OIL FILLER TUBE HUS-603000417
...
15
SPACER 6.50 X 12 X 5.5 HUS-603000420
...
16
HOUSING, FE350 FAN HUS-603003230
