Husqvarna HUV 4210 GXP (2006-11) Utility Vehicle

Model: HUV 4210 GXP (2006-11)

Back To Assemblies

Save Part Not Listed?
product name

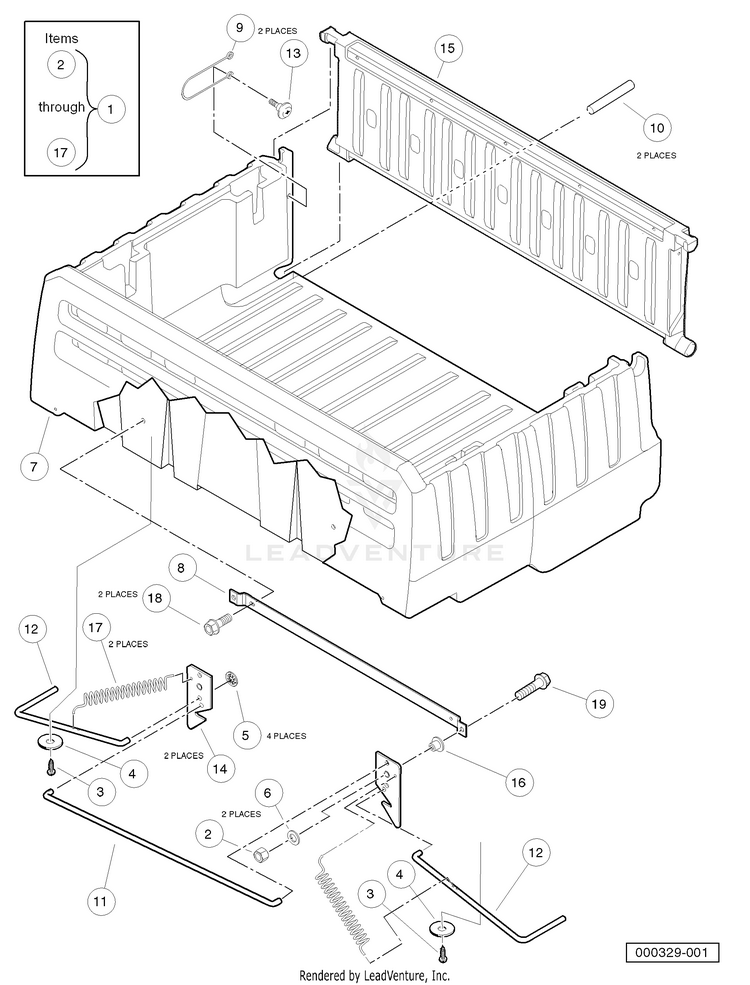

Cargo Bed

...
...
1
BED ASSEMBLY (includes items 2 through 19) HUS-603003274
...
2
LOCKNUT, DIMPLED HUS-603000101
...
3
SCREW, HEX WASH HUS-603000110
...
4
WASHER, 5/16 TYPE B FLAT HUS-603003045
...
5
PUSHNUT, 3/8 HUS-603003066
...
6
Washer, 3/8 Flat Type A HUS-603002160
...
7
Bed HUS-603002294
...
8
Support, Latch Link HUS-603002295
...
9
LANYARD, TAILGATE HUS-603002296
...
10
Pin, Support HUS-603002297
...
11
Rod, Long Link HUS-603002298
...
12
Rod, Bed Lift, Short Bent HUS-603002299
...
13
BOLT LANYARD HUS-603002300
...
14
Catch, Tilt Bed HUS-603002301
...
15
ASM, TAILGATE 4200 SERIES HUS-531308266
...
16
Bearing, Bronze, 1/2x9/32 HUS-603002335
...
17
Spring, Tilt Latch 3.4 Lb/in HUS-603004375
...
18
SCREW HEX HUS-603000052
...
19
SCREW, CAP, HEX HD 3/8-16X1.00 HUS-603000053
