Husqvarna HUV 4210 GXP (2006-11) Utility Vehicle

Model: HUV 4210 GXP (2006-11)

Back To Assemblies

Save Part Not Listed?
product name

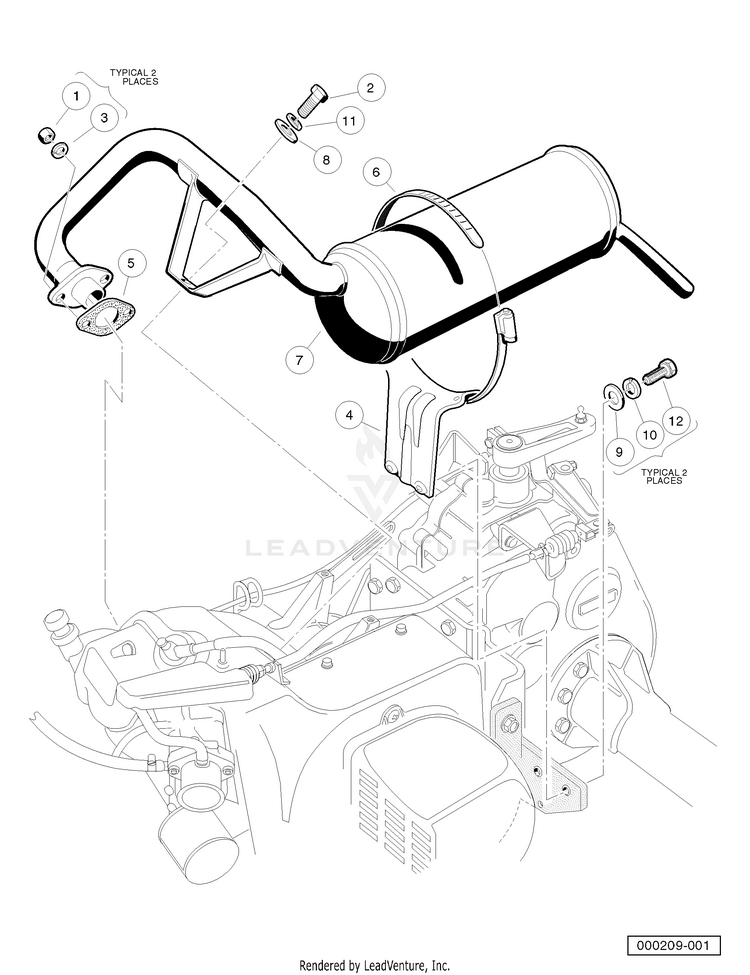

Exhaust System - FE350 Engine

...
...
1
NUT, M8-1.25 HEX HUS-603000142
...
2
SCREW, M8-125 X 22 HEX GR.8.8 HUS-603000579
...
3
LOCKWASH HUS-603000184
...
4
BRACKET, MUFFLER MOUNTING HUS-603000270
...
5
GASKET, FE350 EXHAUST HUS-603002993
...
6
CLAMP, 5" MUFFLER HOSE HUS-603000431
...
7
EXHAUST SYSTEM, FE350 HUS-603003198
...
8
WASHER, 5/16 TYPE A FLAT HUS-603000065
...
9
WASHER 1/4 FLAT HUS-603000054
...
10
LOCKWASHER, 1/4 HELICAL SPLIT HUS-603000058
...
11
LOCKWASHER, 5/16 SPLIT HUS-603000072
...
12
SCREW, 1/4-20 X .75 HEX HUS-603000083
