Husqvarna HUV 4210 GXP (2006-11) Utility Vehicle

Model: HUV 4210 GXP (2006-11)

Back To Assemblies

Save Part Not Listed?
product name

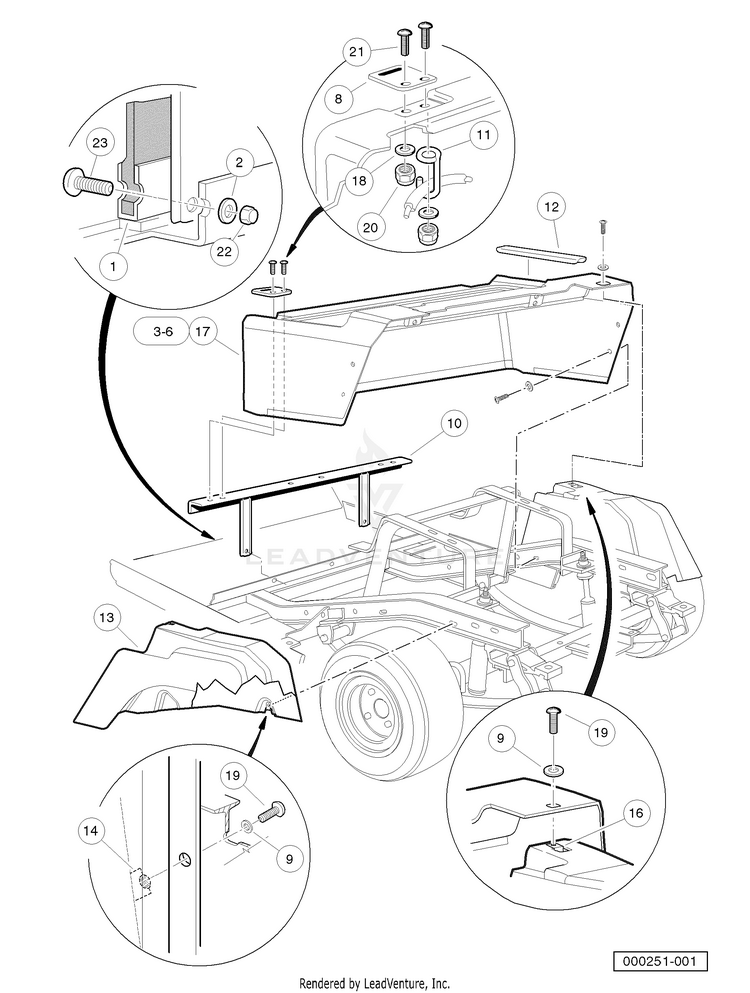

Rear Body And Fender

...
...
1
BODY KICK PLATE HUS-603003629
...
2
WASHER HUS-603000222
...
3
Body, Rear, Gas, Red HUS-102796801
...
4
Body, Rear, Gas, Green HUS-102796803
...
5
Body, Rear, Gas, Classic Blue HUS-102796804
...
6
Body, Rear, Gas, Olive Green HUS-102796805
...
8
BODY, HINGE PLATE HUS-603000139
...
9
WASHER HUS-603000222
...
10
BODY SUPPORT FRONT HUS-603003156
...
11
CABLE RETAINER HUS-603003195
...
12
WEAR PAD HUS-603003252
...
13
FENDER ASM, BODY, DVR (includes item 14) HUS-603003275
...
14
U-NUT, 1/4-20 PALNUT BRAND HUS-603003154
...
15
FENDER ASM, BODY, PASS (includes item 16) HUS-603002292
...
16
U-NUT, 1/4-20 PALNUT BRAND HUS-603003154
...
17
BODY, REAR, GAS, CUT, ORG HUS-603002317
...
18
WASHER 1/4 FLAT HUS-603000054
...
19
SCREW, 1/4-20 X .75 HEX HUS-603000083
...
20
LOCKNUT, 1/4-20 NYLON INSERT HUS-603000089
...
21
SCREW, 1/4-20 X 1.0 TRS HD MCH HUS-603000091
...
22
LOCKNUT, 1/4-20 NYLON INSERT HUS-603000089
...
23
SCREW, 1/4-20 X 1.0 TRS HD MCH HUS-603000091
