Husqvarna HUV 4210 GXP (2006-11) Utility Vehicle

Model: HUV 4210 GXP (2006-11)

Back To Assemblies

Save Part Not Listed?
product name

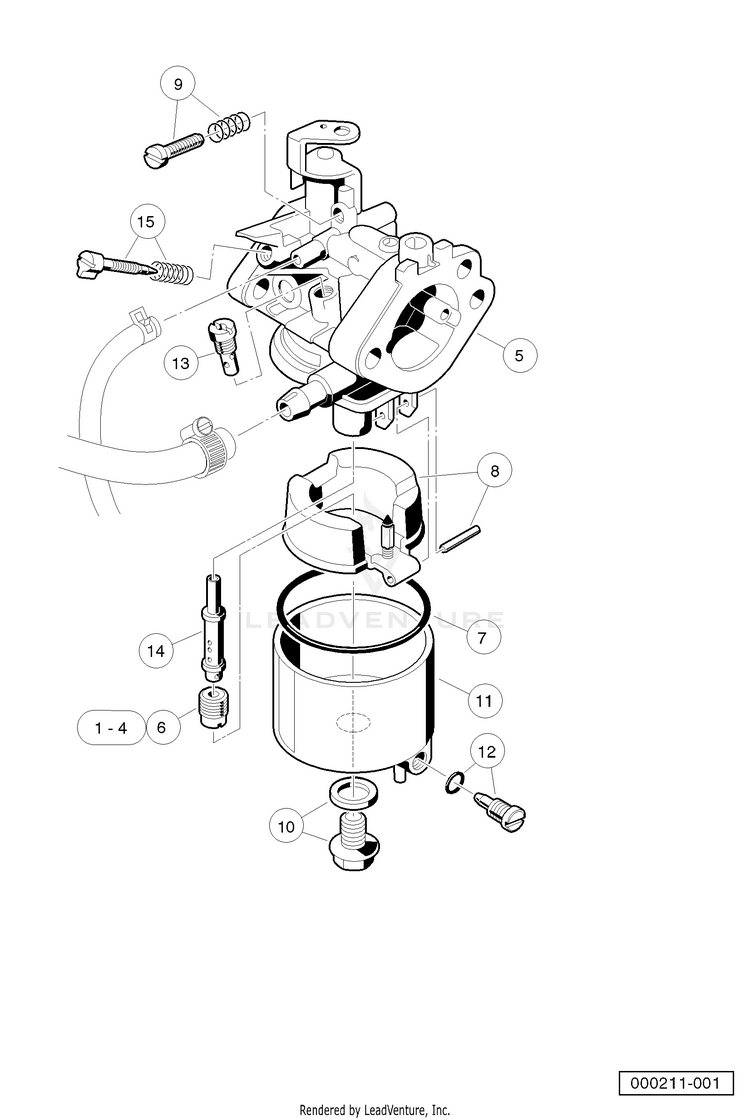

Carburetor Assembly - FE290

...
...
1
JET, HIGH ALTITUDE OHV HUS-603003093
...
2
JET, HIGH ALTITUDE OHV HUS-603003094
...
3
JET, HIGH ALTITUDE OHV HUS-603003095
...
4
JET, HIGH ALTITUDE JET HUS-603003096
...
5
CARBURETOR ASSY, FE290D (includes items 6 through 15) HUS-603003218
...
6
JET, HIGH ALTITUDE OHV HUS-603000467
...
7
GASKET, CARB. BOWL OHV HUS-603000297
...
8
FLOAT ASSEMBLY HUS-603000319
...
9
SCREW ASSEMBLY HUS-603000325
...
10
BOLT HUS-603000361
...
11
CHAMBER ASSEMBLY - FLOAT (includes item 12) HUS-603000409
...
12
SCREW ASSEMBLY HUS-603000324
...
13
JET, #40 PILOT HUS-603003242
...
14
NOZZLE, MAIN HUS-603003243
