Husqvarna HUV 4210 GXP (2006-11) Utility Vehicle

Model: HUV 4210 GXP (2006-11)

Back To Assemblies

Save Part Not Listed?
product name

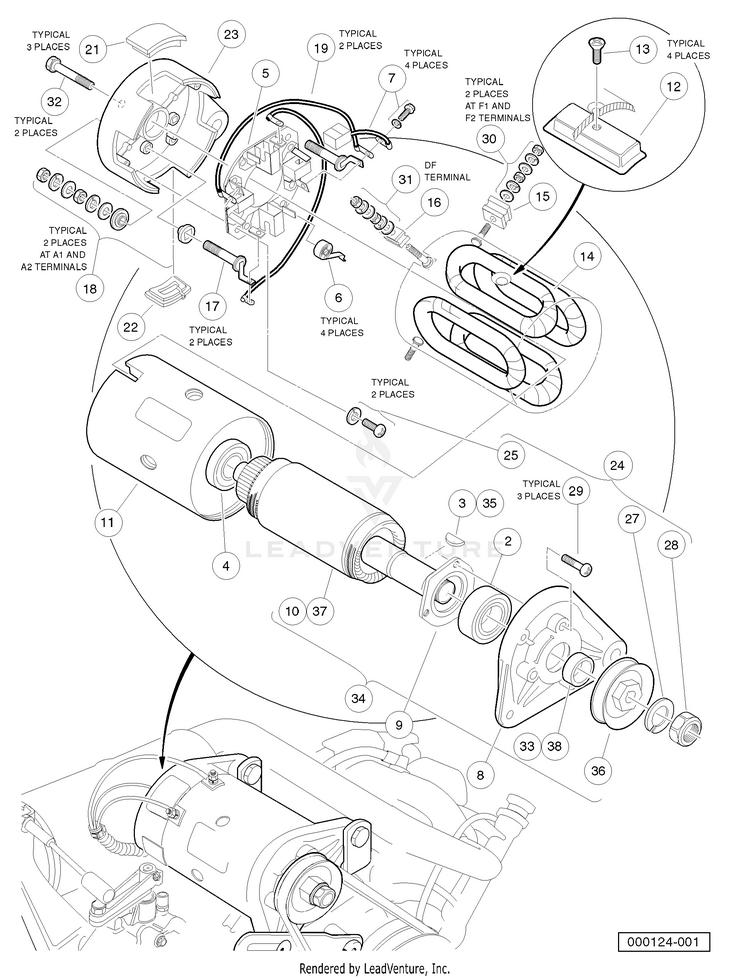

Starter and Generator Assembly Model G425419

...
...
1
STARTER-GENERATOR (CW) (cw) (includes items 2 through 33) HUS-603000516
...
2
BEARING HUS-603000163
...
3
KEY, STARTER GENERATOR HUS-603000164
...
4
BEARING, COMMUTATOR BALL HUS-603000165
...
5
BRUSH HOLDER ASSEMBLY (CW) (cw) (includes item 6) HUS-603000456
...
6
BRUSH SPRING SET HUS-603000547
...
7
BRUSH & SCREW SET (CW) (cw) HUS-603000529
...
8
FRONT BRACKET HUS-603000530
...
9
RETAINER HUS-603000531
...
11
FIELD COIL HOUSING HUS-603000533
...
12
POLE SET HUS-603000534
...
13
SCREW SET HUS-603000535
...
14
FIELD STATOR COIL ASSEMBLY HUS-603000536
...
15
F INSULATOR SET HUS-603000537
...
16
DF INSULATOR HUS-603000538
...
17
A CONNECTOR (CW) (cw) HUS-603000539
...
18
SCREW & MOLD ASSEMBLY SET HUS-603000540
...
19
BRUSH CONNECTOR ASSEMBLY (CW) (cw) HUS-603000541
...
20
COVER SET (includes items 21 and 22) HUS-603000542
...
23
REAR BRACKET (CW) (cw) HUS-603000543
...
24
NUT & SCREW SET (includes items 25 through 29) HUS-603000544
...
25
BRUSH HOLDER ASM SCREW HUS-603000574
...
30
NUT & WASHER SET HUS-603000545
...
31
NUT & WASHER SET HUS-603000546
...
32
THROUGH BOLT SET HUS-603000548
...
33
SPACER HUS-603000609
...
34
Armature Asm Conversion Kit (includes items 35 through 38) HUS-603000532
...
35
KEY, STARTER GENERATOR HUS-603000164
...
36
PULLEY, STARTER GENERATOR Item 36 will ONLY fit Model G425419 Starter/Generator. HUS-603000221
...
38
SPACER HUS-603000609
