Husqvarna HUV 4210 GXP (2006-11) Utility Vehicle

Model: HUV 4210 GXP (2006-11)

Back To Assemblies

Save Part Not Listed?
product name

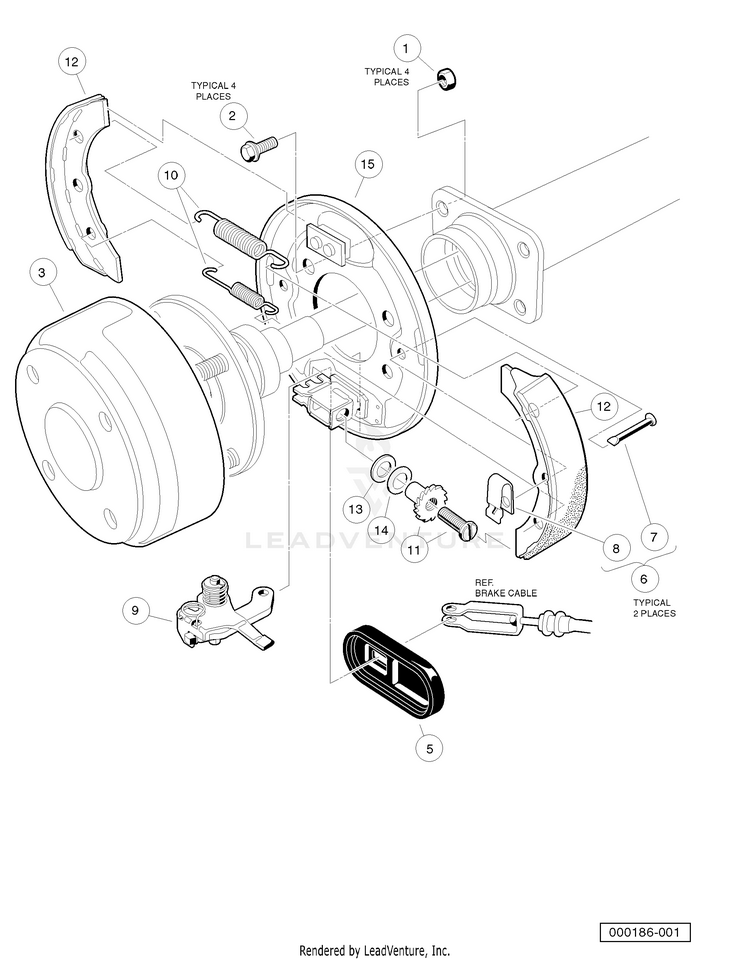

Rear Brake Assembly, Self-Adjusting - Vehicles with 2-Wheel Brakes

...
...
1
NUT HUS-603000193
...
2
BOLT, BRAKE CLUSTER MOUNTING HUS-603003069
...
3
DRUM W/O CENTER HOLE, BRAKE HUS-603003175
...
4
CLUSTER ASSY, RH BRAKE (includes items 5 through 15) HUS-603003186
...
5
DUST COVER HUS-603003038
...
6
KIT, SHOE RETAINER (includes items 7 and 8) HUS-603003044
...
9
LEVER ASM S.A. BRAKE RH (Passenger) HUS-603003179
...
10
PACKAGE BRAKE SPRING SELF ADJ HUS-603003181
...
11
ADJ MECHANISM S.A. BRAKES RH (Passenger) HUS-603003182
...
12
BRAKE SHOE PACKAGE SELF ADJ HUS-603003185
...
13
PLATE WASHER BRAKE SELF ADJ HUS-603003188
...
14
WASHER BRAKE SELF ADJ HUS-603003189
...
15
PLATE ASSY, RH BRAKE BACKING HUS-603003190
...
16
CLUSTER ASSY, LH BRAKE (includes items 17 through 27) HUS-603003187
...
17
DUST COVER HUS-603003038
...
18
KIT, SHOE RETAINER (includes items 19 and 20) HUS-603003044
...
21
LEVER ASM S.A. BRAKE LH HUS-603003180
...
22
PACKAGE BRAKE SPRING SELF ADJ HUS-603003181
...
23
ADJ MECHANISM S.A. LH HUS-603003183
...
24
BRAKE SHOE PACKAGE SELF ADJ HUS-603003185
...
25
PLATE WASHER BRAKE SELF ADJ HUS-603003188
...
26
WASHER BRAKE SELF ADJ HUS-603003189
...
27
PLATE ASSY, LH BRAKE BACKING HUS-603003191
