Husqvarna HUV 4210 GXP (2006-11) Utility Vehicle

Model: HUV 4210 GXP (2006-11)

Back To Assemblies

Save Part Not Listed?
product name

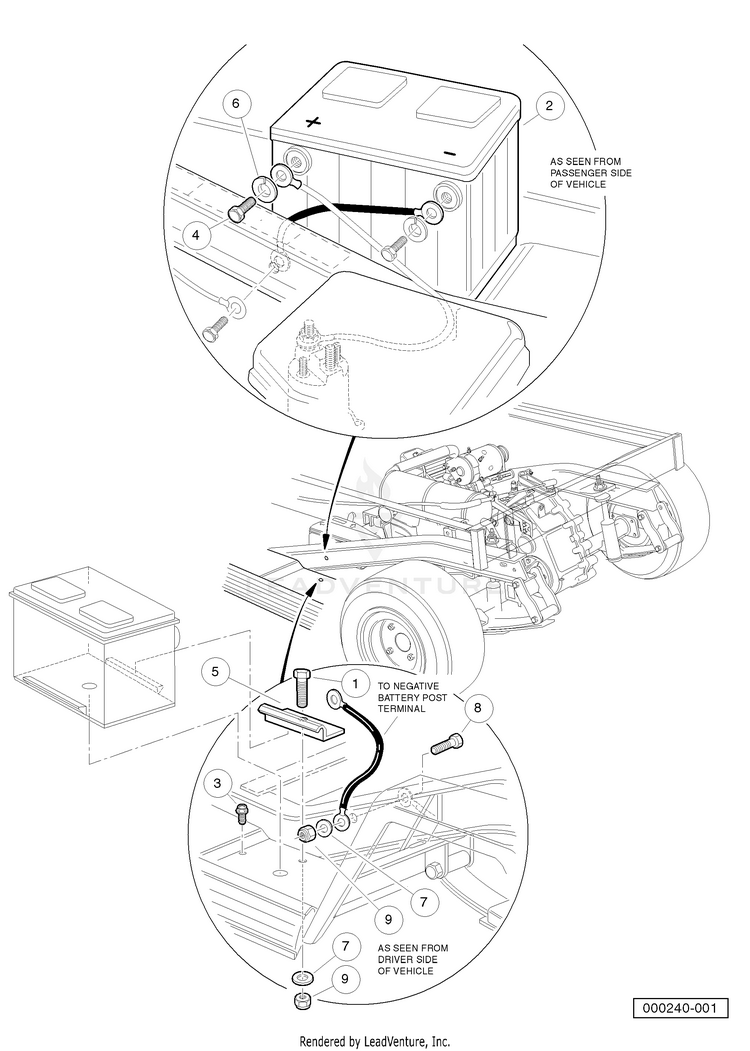

Battery

...
...
1
SCREW HEX CAP HUS-603000116
...
2
BATTERY, 12 VOLT HUS-603000002
...
3
SCREW HUS-603000220
...
4
SCREW HUS-603000224
...
5
CLAMP - BATTERY HUS-603000576
...
6
LOCKWASHER, 3/8 STAINLESS STL HUS-603000890
...
7
WASHER, 5/16 TYPE A FLAT HUS-603000065
...
8
SCREW, 5/16-18 X .75 HX HD CAP HUS-603000071
...
9
LOCKNUT, 5/16-18 NYLON INSERT HUS-603000078
