Husqvarna HUV 4210 GXP (2006-11) Utility Vehicle

Model: HUV 4210 GXP (2006-11)

Back To Assemblies

Save Part Not Listed?
product name

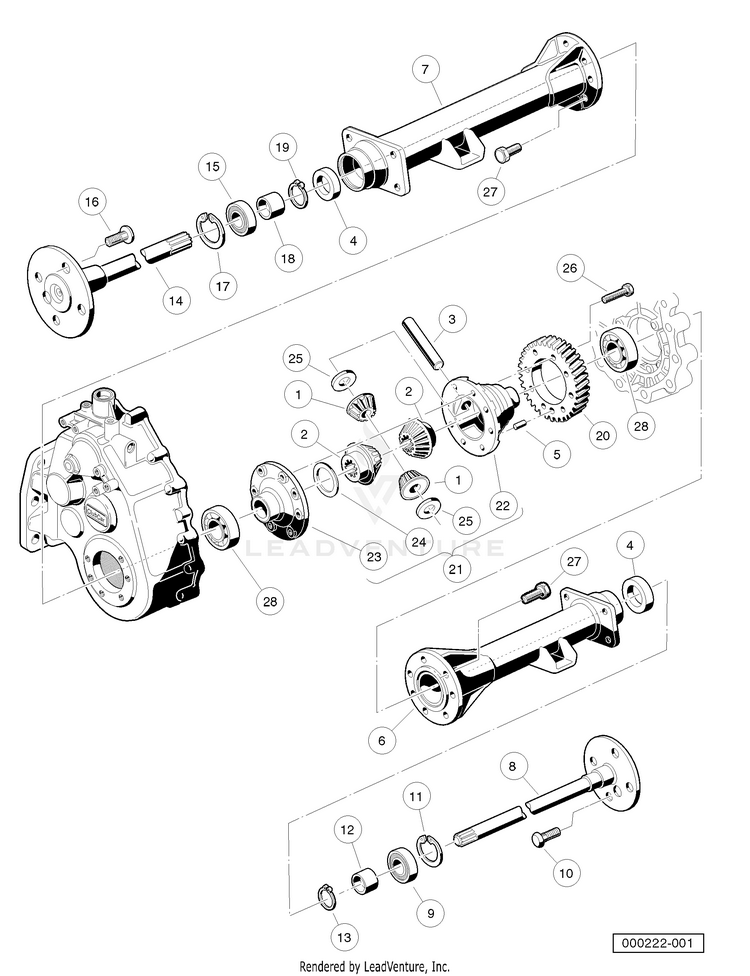

Transaxle / Differential and Axles

...
...
1
DIFFERENTIAL IDLER GEAR HUS-603000186
...
2
DIFFERENTIAL GEAR HUS-603003060
...
3
DIFFERENTIAL PIN HUS-603000187
...
4
AXLE SHAFT OIL SEAL HUS-603003062
...
6
PIPE - COMP. HUS-603003209
...
7
PIPE - COMP. HUS-603003210
...
8
AXLE ASSEMBLY (includes items 9 through 13) HUS-603003211
...
9
OUTER AXLE, TUBE BEARING HUS-603000120
...
10
LUG STUD HUS-603000189
...
11
CIRCLIP TYPE C HUS-603000190
...
12
BUSHING W/25 MM I.D. HUS-603003070
...
13
RETAINING RING HUS-603003151
...
14
AXLE ASSEMBLY (includes items 15 through 19) HUS-603003212
...
15
OUTER AXLE, TUBE BEARING HUS-603000120
...
16
LUG STUD HUS-603000189
...
17
CIRCLIP TYPE C HUS-603000190
...
18
BUSHING W/25 MM I.D. HUS-603003070
...
19
RETAINING RING HUS-603003151
...
20
GEAR HELICAL HUS-603003216
...
21
DIFF. GEAR CASE KIT (includes items 22 through 25) HUS-603003222
...
22
DIFFERENTIAL GEAR CASE L.H. HUS-603003058
...
23
DIFFERENTIAL GEAR CASE R.H. HUS-603003059
...
24
PLATE, THRUST (DIFF. GEAR) (Differential Gear) HUS-603003061
...
25
PLATE (Idler Gear) HUS-603000188
...
26
SCREW, M8-1.25 X 35MM HEX HEAD HUS-603000605
...
27
BOLT, M10 X 1.5 X 30MM HUS-603000711
...
28
INNER AXLE, TUBE BEARING HUS-603000075
