Husqvarna HUV 4210 GXP (2006-11) Utility Vehicle

Model: HUV 4210 GXP (2006-11)

Back To Assemblies

Save Part Not Listed?
product name

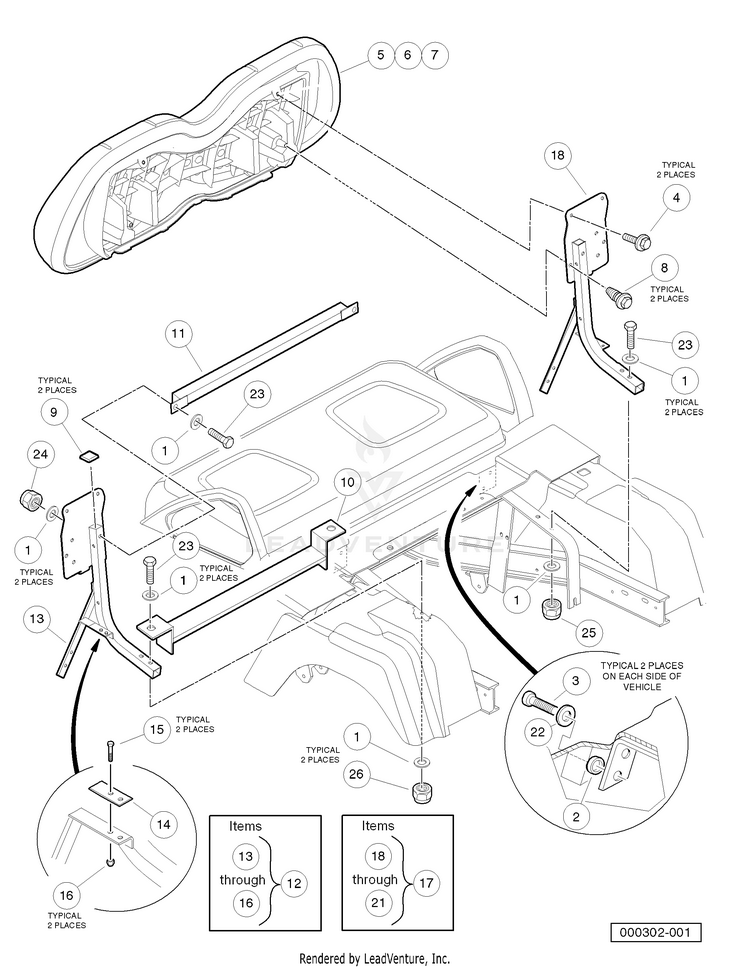

Seat Back

...
...
1
WASHER, 1/4 FLAT HUS-603003048
...
2
BODY SPACER HUS-603000434
...
3
SCREW, 5/16-18 X 1.25 THRD FRM HUS-603003221
...
4
SCREW - M6 X 1.0 X 30 SEMS HUS-603003254
...
5
Service Backrest Asm, Beige HUS-603004373
...
6
Service Backrest Asm, White HUS-603004374
...
7
SERVICE BACKREST ASM-GRAY HUS-603003266
...
8
SCREW, M6 HEX W "CA" POINT HUS-603003268
...
9
PLUG, SQUARE - 25.4 MM HUS-603003269
...
10
WELDMENT-BED SUPPORT HUS-603002302
...
11
SEAT SUPPORT, X BRACE HUS-603002316
...
12
SEAT SUPPORT W/STRIKER,DRIVER (includes items 13 through 16) HUS-603002304
...
14
STRIKER PLATE HUS-603002366
...
15
SCREW, 1/4-20 X .75 HEX HUS-603000083
...
16
LOCKNUT, 1/4-20 NYLON INSERT HUS-603000089
...
17
SEAT SUPPORT W/STRIKER, PASSEN (passenger) (includes items 18 through 21) HUS-603002305
...
19
STRIKER PLATE HUS-603002366
...
20
SCREW, 1/4-20 X .75 HEX HUS-603000083
...
21
LOCKNUT, 1/4-20 NYLON INSERT HUS-603000089
...
22
WASHER, 5/16 TYPE A FLAT HUS-603000065
...
23
SCREW, 1/4-20 X 2.00 HX HD CAP HUS-603000074
...
24
LOCKNUT, 5/16-18 NYLON INSERT HUS-603000078
...
25
LOCKNUT, 1/4-20 NYLON INSERT HUS-603000089
...
26
SCREW, 5/16-18 X 1.75 HX HD CP HUS-603002352
