Husqvarna HUV 4210 GXP (2006-11) Utility Vehicle

Model: HUV 4210 GXP (2006-11)

Back To Assemblies

Save Part Not Listed?
product name

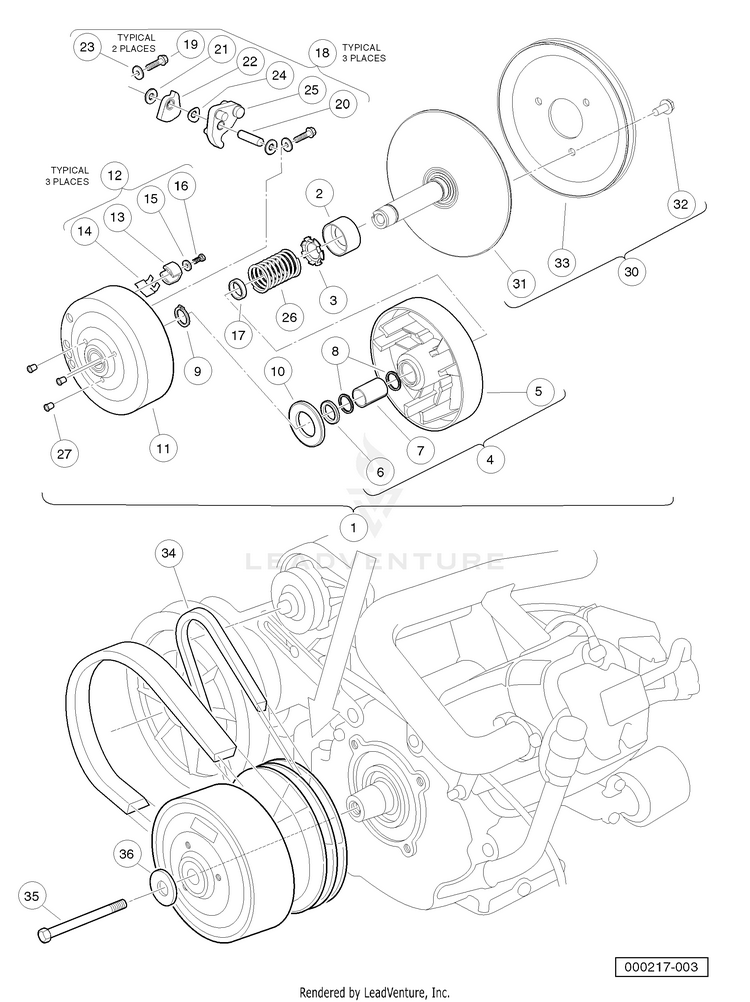

Drive Clutch

...
...
1
DRIVE CLUTCH ASSY. FE 350/272 (includes items 2 through 28) HUS-603003193
...
2
BEARING IDLER HUS-603000195
...
3
RETAINER, SPRING HUS-603000196
...
4
MOVABLE FACE ASSEMBLY (includes items 5 through 7) HUS-603000197
...
6
RETAINER HUS-603000198
...
8
RING, SPIRAL BACKUP HUS-603000199
...
9
RING .810" INTERNAL HUS-603000200
...
10
WASHER, THRUST HUS-603000201
...
11
DRIVE HUB ASSY HUS-603000202
...
12
DRIVE CLUTCH BUTTON KIT (includes items 13 through 16) HUS-603000227
...
13
DRIVER, DRIVE CLUTCH HUS-603000203
...
14
SPRING, DRIVE BUTTON HUS-603000219
...
15
WASHER FLAT HUS-603000051
...
16
SCREW, # 10-24 X .50 HEX HUS-603000092
...
17
SPACER, FIXED FACE SHAFT HUS-603000285
...
18
DRIVE CLUTCH WEIGHT KIT DS OHV (includes items 19 through 25) HUS-603000369
...
19
SCREW, 1/4-20 X 1.00 HEX HEAD HUS-603003068
...
21
WASHER HUS-603000204
...
24
WASHER, WAVE HUS-603000282
...
26
SPRING-DRIVE CLUTCH FE350 HUS-603003152
...
28
KIT, FXD FACE DR ASM FE290/350 (includes items 29 and 30) HUS-603002361
...
32
SCREW HUS-603000220
...
34
BELT, STARTER-GENERATOR HUS-603000589
...
35
SCREW 3/8-24X5.5 HEX LOC PTCH HUS-603004380
...
36
WASHER, 3/8 TYPE B FLAT HUS-603003617
