Husqvarna HUV 4210 GXP (2006-11) Utility Vehicle

Model: HUV 4210 GXP (2006-11)

Back To Assemblies

Save Part Not Listed?
product name

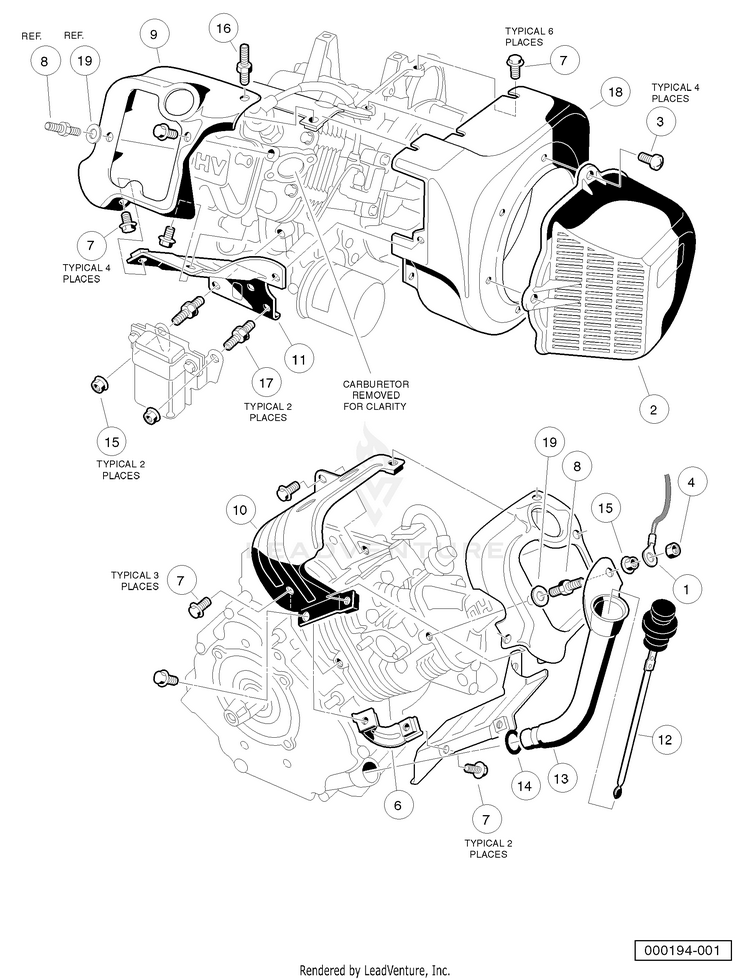

FE290 Engine - Shrouds and Brackets

...
...
1
WIRE ASM HUS-603000247
...
2
SHROUD, FAN HUS-603000265
...
3
SCREW, M6-1.00 X 10MM PAN HD HUS-603000274
...
4
LOCKNUT, M6-1.00 NYLON INSERT HUS-603000558
...
5
ENGINE, FE290 (CW) 101953901 (cw) (includes items 6 through 19) FE290 engine component listings span several pages. HUS-603003239
...
6
BRACKET HUS-603003101
...
7
BOLT, FLANGED HUS-603000309
...
8
BOLT HUS-603000328
...
9
SHROUD, ENGINE, FE290D HUS-603003127
...
10
SHROUD, ENGINE, FE290D HUS-603003128
...
11
SHROUD, ENGINE, FE290D HUS-603003129
...
12
DIPSTICK HUS-603000333
...
13
OIL FILLER TUBE, FE290D HUS-603003132
...
14
O-RING HUS-603000337
...
15
NUT HUS-603000341
...
16
SCREW, M6-1.00 STUD HUS-603003158
...
17
STUD, M6-1.00 2-ENDED HUS-603003220
...
18
HOUSING, FE290 FAN HUS-603003226
