Husqvarna HUV 4210 GXP (2006-11) Utility Vehicle

Model: HUV 4210 GXP (2006-11)

Back To Assemblies

Save Part Not Listed?
product name

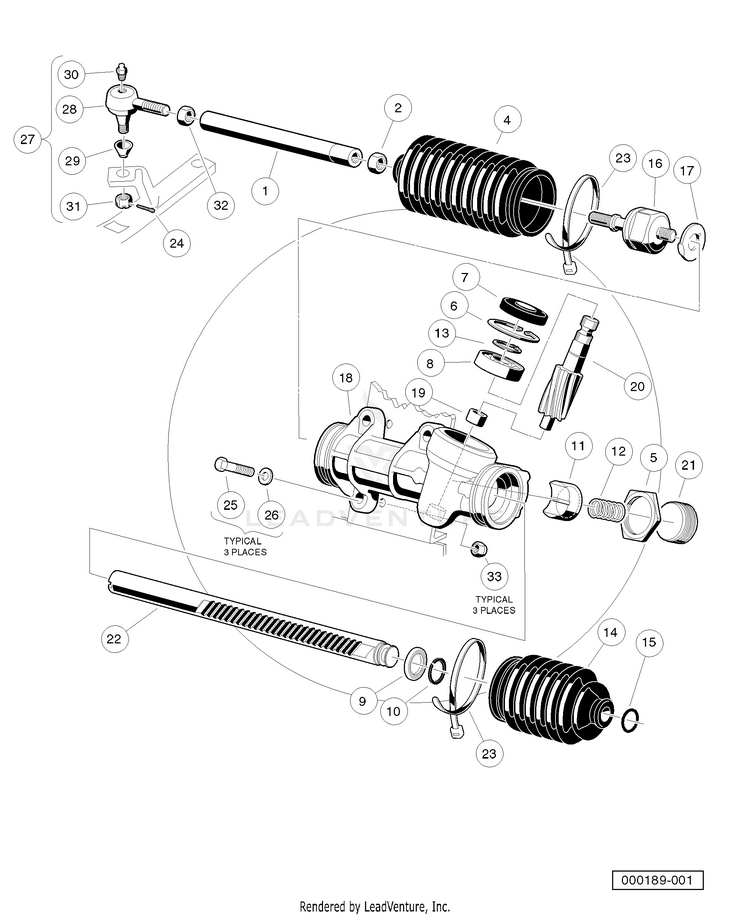

Steering Gear Assembly

...
...
1
DRAG LINK RACK & PINION HUS-603003054
...
2
12MM HEX NUT HUS-603000167
...
3
ASM, STEERING RACK, 3.13 (without yoke) (includes items 4 through 23) HUS-603003201
...
4
BELLOWS, LONG HUS-603000166
...
5
RACK SCREW LOCKNUT HUS-603000168
...
6
SNAP RING HUS-603000169
...
7
SEAL, STEERING PINION DUST HUS-603000170
...
8
BEARING BALL HUS-603000549
...
9
STOP WASHER HUS-603003202
...
10
STOP RING C - TYPE HUS-603003203
...
11
SUPPORT YOKE HUS-603000550
...
12
RACK GUIDE PRESSURE SPRING HUS-603000551
...
13
C-TYPE STOP RING HUS-603000552
...
14
BELLOWS, SHORT HUS-603003204
...
15
DUST SEAL RETAINING RING HUS-603003205
...
16
INNER BALL JOINT ASM HUS-603000553
...
17
WASHER, TAB HUS-603003206
...
23
TIE WRAP, 8" NYLON HUS-603002963
...
24
PIN,CUT COTTER HUS-603000063
...
25
SCREW, 3/8-16 X 1.5 HX HD CAP HUS-603000068
...
26
WASHER, 3/8 FLAT HUS-603000055
...
27
BALL JOINT, LH (includes items 28 through 31) HUS-603002040
...
29
SEAL, VERTICAL SOCKET DUST HUS-603003047
...
30
FITTING, 1/4-28 THRD FRM GREAS HUS-603000264
...
31
NUT, 3/8-24 UNF HEX THICK SLOT HUS-603003309
...
32
NUT, 1/2-20 HEX HUS-603003308
...
33
LOCKNUT, 3/8-16 HEX HUS-603000095
