Husqvarna HUV 4210 GXP (2006-11) Utility Vehicle

Model: HUV 4210 GXP (2006-11)

Back To Assemblies

Save Part Not Listed?
product name

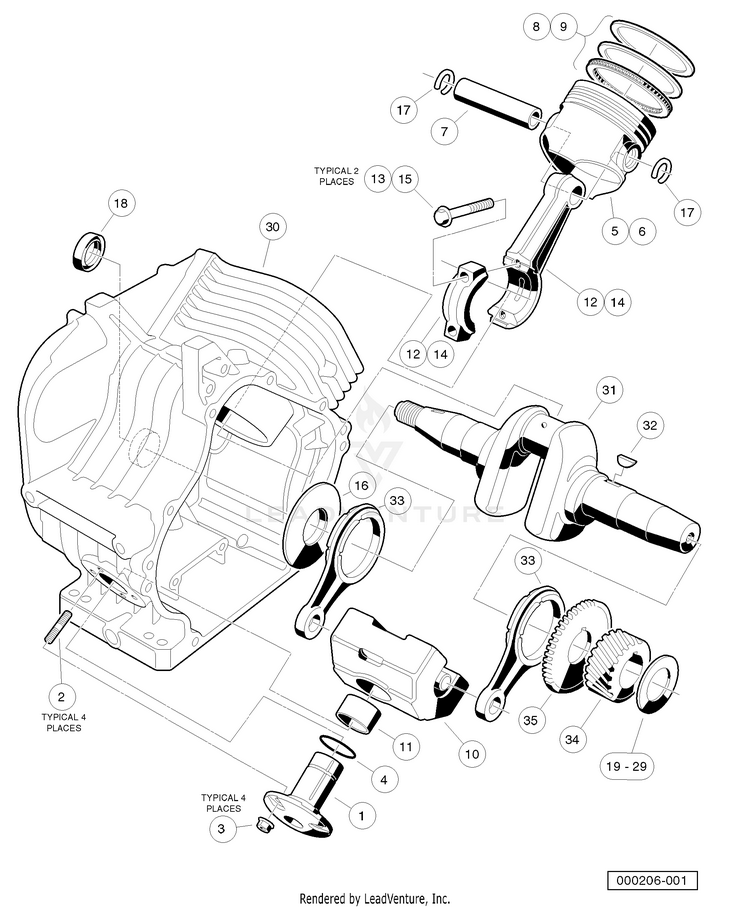

FE350 Engine - Crankcase and Crankshaft

...
...
1
SHAFT, GUIDE, COUNTER-BALANCE HUS-603000312
...
2
STUD, 6X14 HUS-603000338
...
3
NUT HUS-603000341
...
4
O-RING HUS-603000351
...
5
PISTON - ENGINE STD HUS-603003166
...
6
PISTON, .50MM OVERSIZE ENGINE HUS-603003167
...
7
PIN PISTON HUS-603000403
...
8
RING SET, STANDARD PISTON HUS-603003168
...
9
RING SET PISTON .50MM OVERSIZE HUS-603003169
...
10
WEIGHT (includes item 11) HUS-603003170
...
11
BEARING - PLAIN HUS-603000426
...
12
ROD ASSY CONNECTING ROD STD (includes item 13) HUS-603000474
...
13
BOLT HUS-603003173
...
14
ROD ASSY CON ROD .5MM U/S (includes item 15) HUS-603000475
...
15
BOLT HUS-603003173
...
16
SPACER HUS-603000421
...
17
RING - SNAP HUS-603000422
...
18
SEAL - OIL HUS-603000423
...
19
SHIM JCRANKSHAFT FE350 HUS-603000479
...
20
SHIM CRANKSHAFT FE350 HUS-603000480
...
21
SHIM CRANKSHAFT FE350 HUS-603000481
...
22
SHIM CRANKSHAFT FE350 HUS-603000482
...
23
SHIM CRANKSHAFT FE350 HUS-603000483
...
24
SHIM CRANKSHAFT FE350 HUS-603000484
...
25
SHIM CRANKSHAFT FE350 HUS-603000485
...
26
SHIM CRANKSHAFT FE350 HUS-603000486
...
27
SHIM CRANKSHAFT FE350 HUS-603000487
...
28
SHIM CRANKSHAFT FE350 HUS-603000488
...
29
SHIM CRANKSHAFT FE350 HUS-603000489
...
30
CRANKCASE COMPLETE, FE350 CW (cw) HUS-603003229
...
31
SPUR GEAR (includes items 32 through 35) HUS-603000859
...
32
KEY HUS-603000345
...
33
ROD HUS-603000412
