Husqvarna HUV 4210 GXP (2006-11) Utility Vehicle

Model: HUV 4210 GXP (2006-11)

Back To Assemblies

Save Part Not Listed?
product name

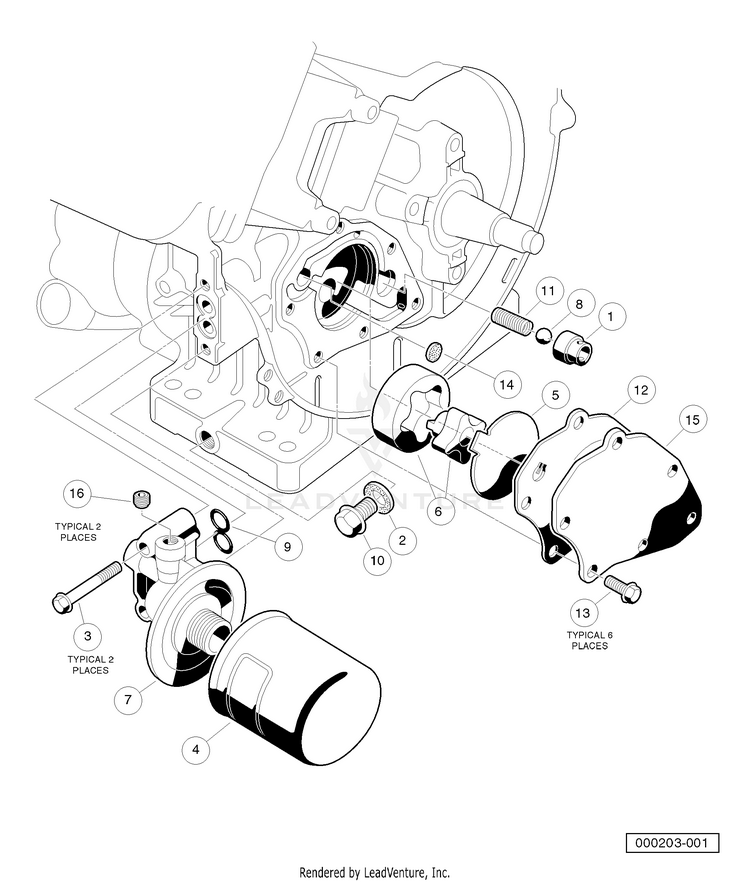

FE350 Engine - Oil Circulation

...
...
1
SEAT, VALUE OIL PRESS RELIEF HUS-603000294
...
2
GASKET, DRAIN PLUG HUS-603000295
...
3
BOLT, FLANGED HUS-603000310
...
4
FILTER, OIL HUS-603000006
...
5
PLATE - OIL - PUMP HUS-603000314
...
6
OIL PUMP AND ROTOR HUS-603000471
...
7
BRACKET - OIL FILTER MOUNT HUS-603000326
...
8
BALL, STEEL, PRESS, RELIEF HUS-603000335
...
9
O-RING HUS-603000350
...
10
PLUG, DRAIN FE290D HUS-603000354
...
11
SPRING HUS-603000357
...
12
GASKET HUS-603000396
...
13
BOLT - FLANGED SMALL HUS-603000406
...
14
FILTER HUS-603000407
...
15
COVER - PUMP HUS-603000408
...
16
PLUG HUS-603000424
