Husqvarna HUV 4210 GXP (2006-11) Utility Vehicle

Model: HUV 4210 GXP (2006-11)

Back To Assemblies

Save Part Not Listed?
product name

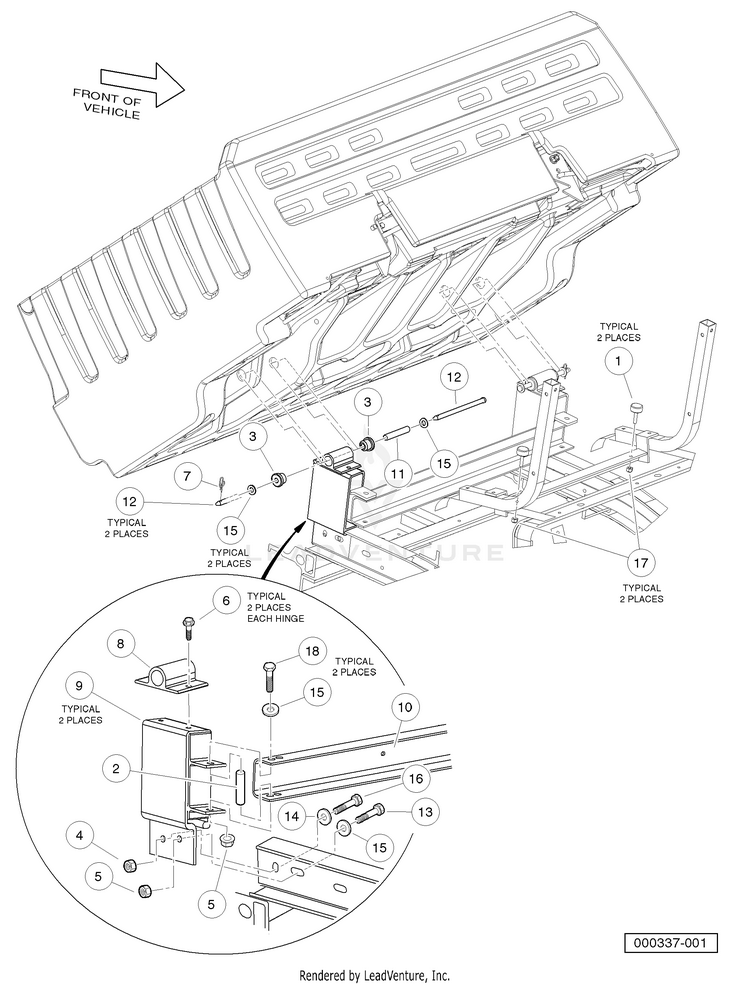

Bed Hinge

...
...
1
BUMPER, BRAKE PEDAL RUBBER HUS-603000113
...
2
BUSHING - STEEL (GAS CAR) HUS-603000136
...
3
BUSHING, URETHANE HUS-603000263
...
4
LOCKNUT, 1/4-20 HEX WHIZ HUS-603000521
...
5
LOCKNUT, 3/8-16 FLANGED DIMPLE HUS-603000780
...
6
SCREW-M8 X 1.25 30, TRI, HX F HUS-603000869
...
7
RUE RING - 1/2" HUS-603003253
...
8
HINGE-ROTO BED HUS-603003281
...
9
SUPPORT, HINGE HUS-603003287
...
10
STIFFENER, BED SUPPORT HUS-603002321
...
11
BUSHING - STEEL, BED HUS-603003288
...
12
PIN, CLEVIS, 3/8 HUS-603003292
...
13
SCREW, CAP, HEX HD 3/8-16X1.00 HUS-603000053
...
14
WASHER 1/4 FLAT HUS-603000054
...
15
WASHER, 3/8 FLAT HUS-603000055
...
16
SCREW, 1/4-20 X .75 HEX HUS-603000083
...
17
LOCKNUT, 1/4-20 NYLON INSERT HUS-603000089
...
18
SCREW, 3/8-16 X 3.375 HUS-603000096
