Husqvarna HUV 4210 GXP (2006-11) Utility Vehicle

Model: HUV 4210 GXP (2006-11)

Back To Assemblies

Save Part Not Listed?
product name

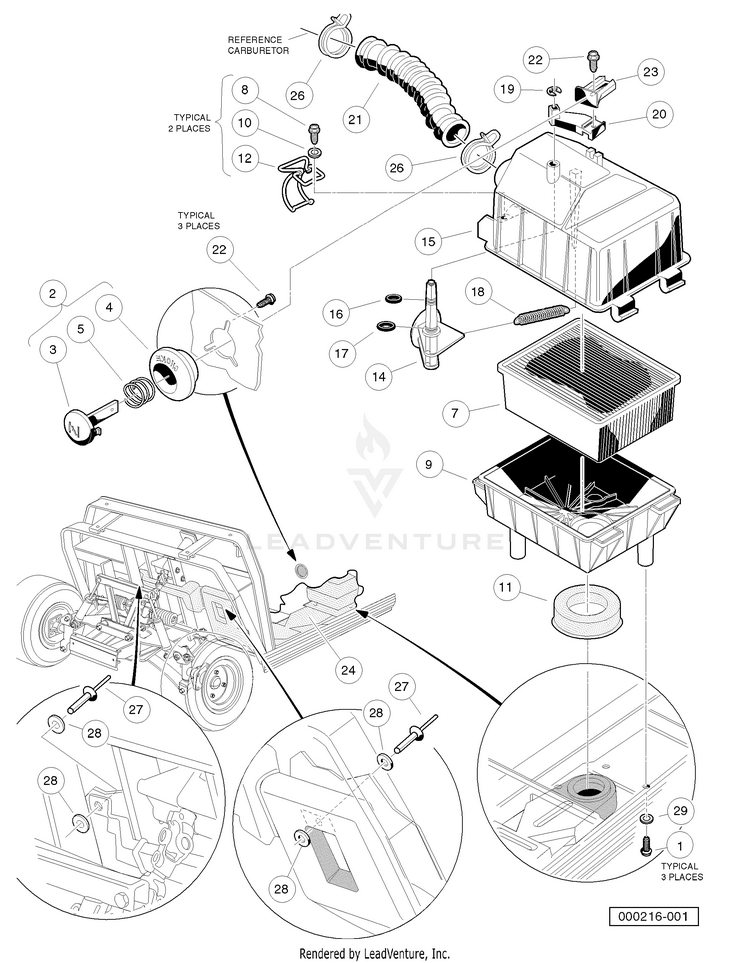

Intake Duct, Choke, and Air Box Assembly

...
...
1
SCREW, #12-16 X .625 HI-LO HUS-603000268
...
2
BUTTON ASSY, CHOKE (includes items 3 through 5) HUS-603003176
...
3
LEVER, CHOKE HUS-603003177
...
4
GUIDE, CHOKE LEVER HUS-603003178
...
5
COMPRESSION SPRING HUS-603003196
...
6
AIR BOX ASSY (includes items 7 through 13) HUS-603000501
...
7
AIR FILTER OHV HUS-603000004
...
8
SCREW, #8 X .500 HX HD HI-LO HUS-603000491
...
9
BOTTOM, AIR BOX HUS-603000494
...
10
WASHER, #8 SS FLAT WASHER HUS-603000555
...
11
SEAL, INTAKE HUS-603000592
...
12
LATCH, WIREFORM HUS-603000594
...
13
TOP ASSY, AIR BOX (includes items 14 through 20) HUS-603000619
...
18
SPRING, EXTENSION RETURN HUS-603000497
...
19
RETAINING RING .25 SHAFT HUS-603000498
...
20
LEVER, CHOKE HUS-603000591
...
21
AIR INTAKE HOSE HUS-603000523
...
22
SCREW, #12-16 X .50 WSHR HI-LO HUS-603003194
...
23
CHOKE POSITIONER HUS-603003231
...
24
DUCT ASSY, DS AIR HUS-603003241
...
26
CLAMP, 1.58" ID HOSE HUS-603000618
...
27
RIVET, 3/16 X .5 ALUM POP HUS-603000067
...
28
WASHER FLAT HUS-603000051
...
29
WASHER 1/4 FLAT HUS-603000054
