Husqvarna HUV 4210 GXP (2006-11) Utility Vehicle

Model: HUV 4210 GXP (2006-11)

Back To Assemblies

product name

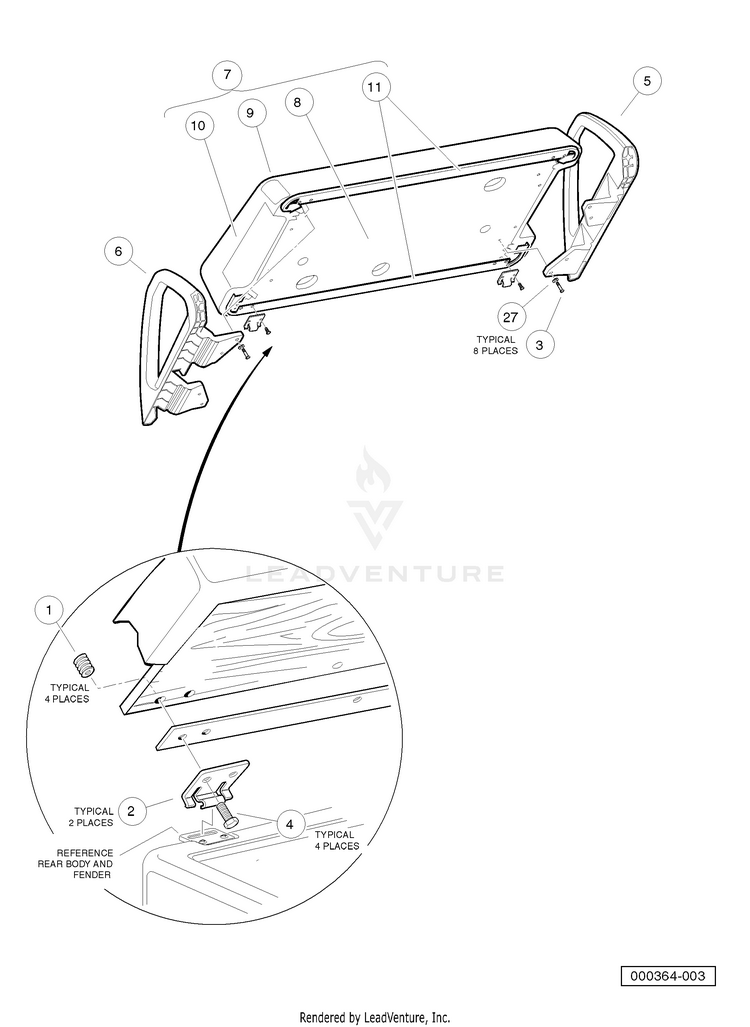

Front Seat Bottom and Armrests

...
...
1
INSERT - WOOD HUS-603002506

...
2
HINGE PLATE HUS-603000125

...
3
SCREW, 1/4-20 X 1.50 HX HD CAP HUS-603003153

...
4
SCREW, 1/4-20 X .750 HEX HEAD HUS-603003240

...
5
ARMREST, RH, DEBADGED (right) HUS-603003247

...
6
ARMREST, LH, DEBADGED (left) HUS-603003248

...
7
SEAT ASSEMBLY-BUFF (includes items 8 through 11) Sub-components contained in items 12, 17, and 22 are the same as those shown for item 7, except for the vinyl seat covers. HUS-603004368

...
9
Vinyl Cover, Seat Bottom, Buff HUS-603004367

...
11
GASKET, SEAT HUS-603003250

...
12
Seat Bottom Assembly, White (includes items 13 through 16) Sub-components contained in items 12, 17, and 22 are the same as those shown for item 7, except for the vinyl seat covers. HUS-603004370

...
14
Vinyl Cover, Seat Bottom, White HUS-603004369

...
16
GASKET, SEAT HUS-603003250

...
17
Seat Bottom Assembly, Black (includes items 18 through 21) Sub-components contained in items 12, 17, and 22 are the same as those shown for item 7, except for the vinyl seat covers. HUS-603004372

...
19
Vinyl Cover, Seat Bottom, Black HUS-603004371

...
21
GASKET, SEAT HUS-603003250

...
22
SEAT ASSEMBLY GRAY (includes items 23 through 26) Sub-components contained in items 12, 17, and 22 are the same as those shown for item 7, except for the vinyl seat covers. HUS-603002258

...
24
GRAY VINL COVER SEAT HUS-603002259

...
26
GASKET, SEAT HUS-603003250

...
27
WASHER 1/4 FLAT HUS-603000054
Schematic Image Zoomed
