Husqvarna HUV 4210 GXP (2006-11) Utility Vehicle

Model: HUV 4210 GXP (2006-11)

Back To Assemblies

Save Part Not Listed?
product name

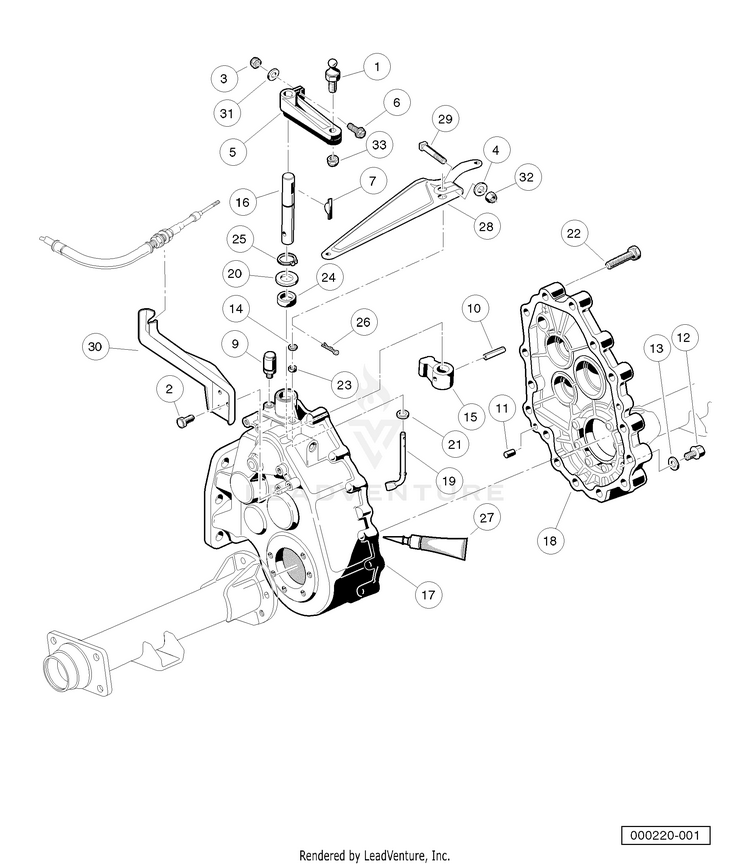

Transaxle / Gear Cases and Brackets

...
...
1
STUD HUS-603000117
...
2
SCREW HX TYP TT HUS-603000134
...
3
LOCKNUT HUS-603000171
...
4
WASHER HUS-603000194
...
5
TRANSMISSION SHIFT LEVER HUS-603000288
...
6
SCREW, #1--32 X .75 HX HD MACH HUS-603000383
...
7
KEY, WOODRUF HUS-603000387
...
8
TRANSAXLE, 11.77 RATIO (includes items 9 through 27) HUS-603003192
...
9
BREATHER HUS-603000150
...
10
ROLL PIN HUS-603000156
...
11
DOWEL PIN HUS-603000159
...
12
FILL PLUG HUS-603002052
...
13
GASKET, DRAIN PLUG HUS-603000295
...
14
WASHER, M6 FLAT HUS-603000329
...
15
LEVER - CHANGE HUS-603000561
...
16
SHAFT-CHANGE HUS-603000562
...
17
CASE - GEAR (driver side) HUS-603003207
...
18
CASE - GEAR (passenger side) HUS-603003208
...
19
ARM PIVOT HUS-603000563
...
20
WASHER HUS-603000569
...
21
WASHER HUS-603000571
...
22
SCREW, M8-1.25 X 40MM HEX HEAD HUS-603000596
...
23
SEAL, OIL HUS-603000597
...
24
SEAL, OIL HUS-603000598
...
25
RING, INTERNAL RETAINING HUS-603000599
...
26
PIN, COTTER HUS-603000606
...
27
SEALANT (Transaxle case) HUS-603000607
...
28
ARM, GOVERNOR HUS-603000520
...
29
SCREW, 1/4-20 X 1.00 SQ HEAD HUS-603000557
...
30
SHIFTER BRACKET HUS-603003233
...
31
WASHER FLAT HUS-603000051
...
32
LOCKNUT, 1/4-20 NYLON INSERT HUS-603000089
...
33
LOCKNUT, 1/4-28 NYLON INSERT HUS-603000094
